CA R32 GTR lsd diff, gtr axles, 5 lug hubs / free shipping

[edmorl]

R32 gtr parts I have laying around, all prices include shipping anywhere in the USA

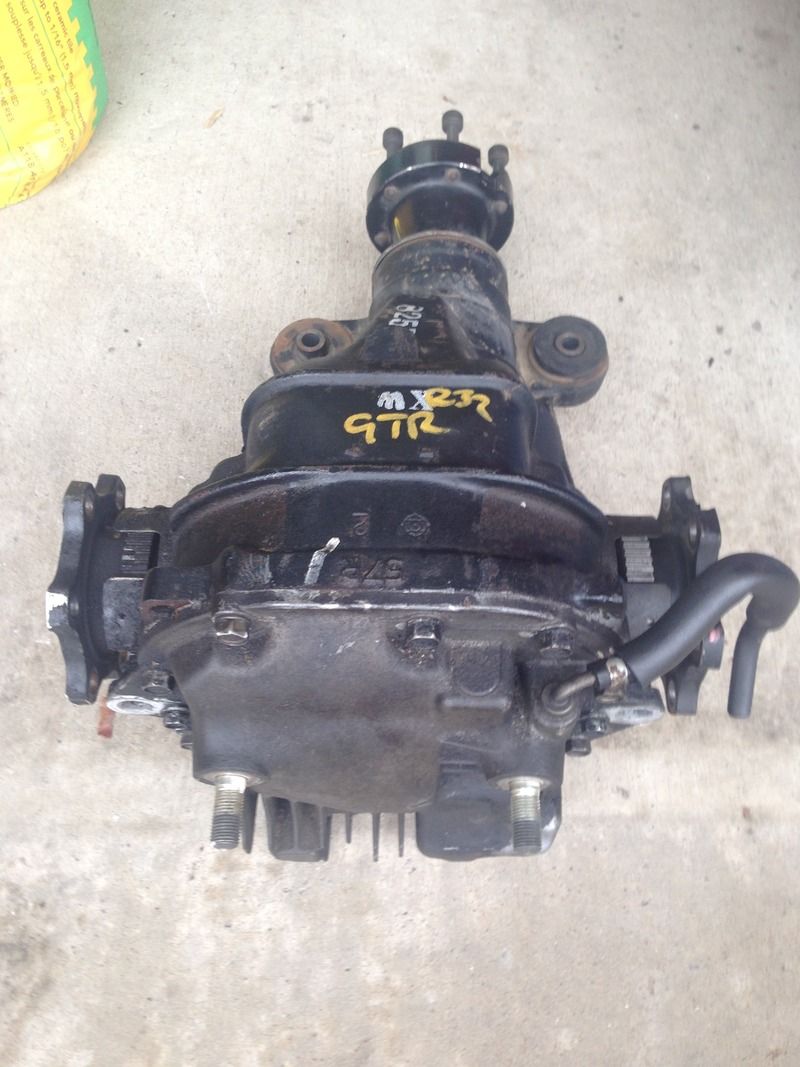

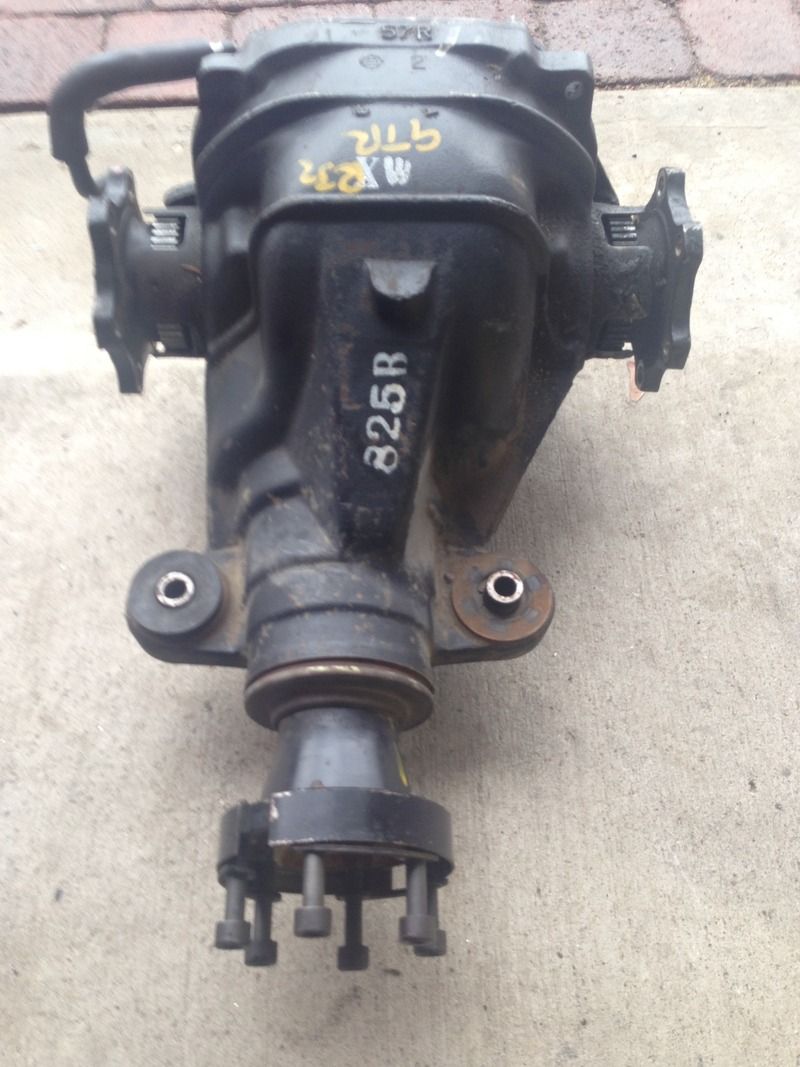

OEM LSD Diff from an R32 skyline GTR - 500$ shipped

Perfect upgrade to your s13/s14 for beefier axles. Similar to the installation of a q45 diff.

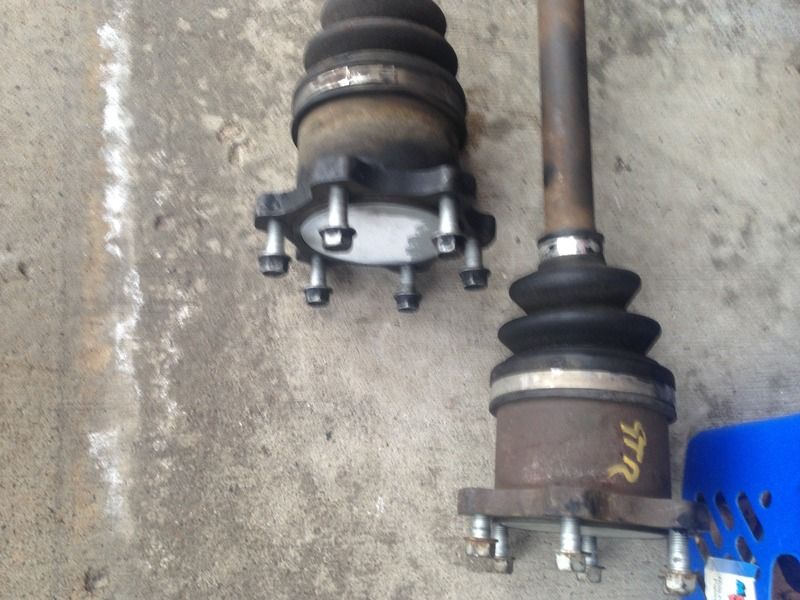

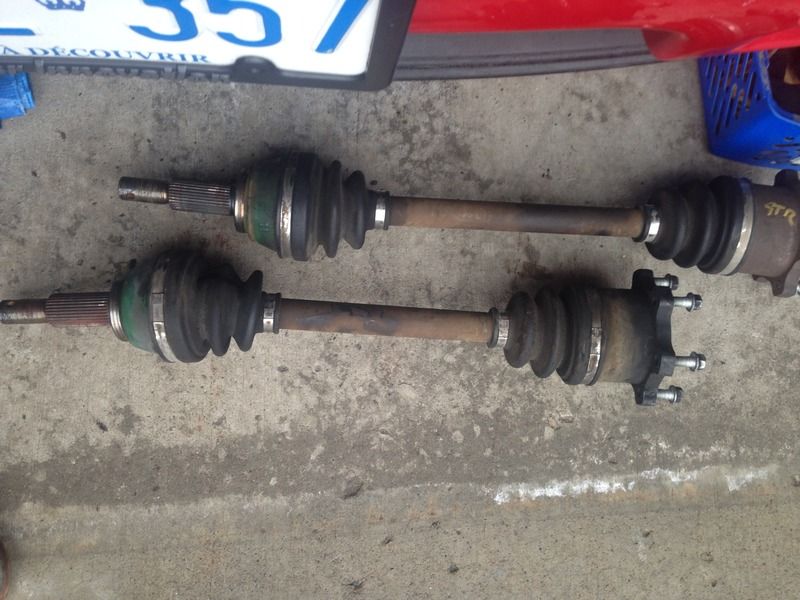

R32 gtr rear axles - 200$ shipped

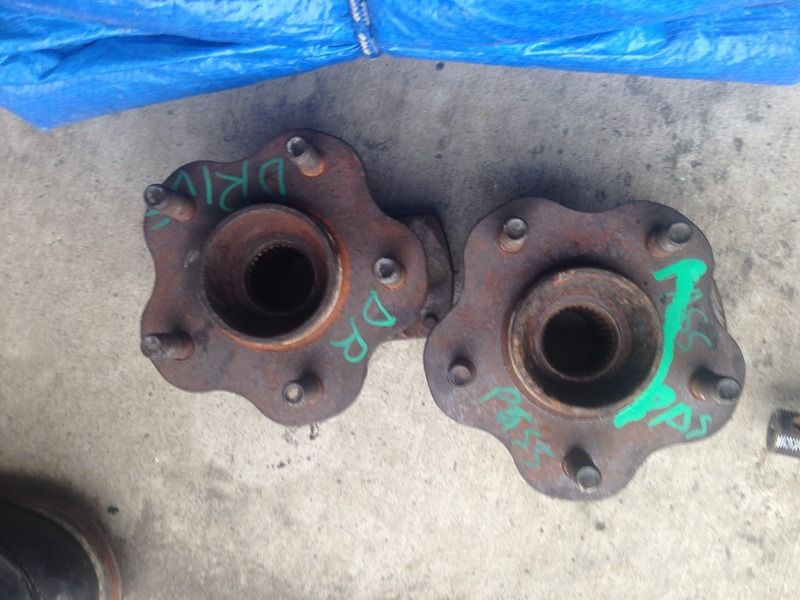

R32 gtr rear 5 bolt hubs. Same as z32tt and q45 - 150$ shipped

[abe2branscome]

Do you happen to know the gear ratio on the diff?

[edmorl]

Originally Posted by abe2branscome

Do you happen to know the gear ratio on the diff?

Standard r32 gtr, 4.1 I believe

[Zed Nismo]

Just fyi for everybody, this R32 GTR setup is a direct bolt on for the s13. I'm not sure for the s14 but I can vouch for the s13, as I have this same setup on mine. Gear ratio is 4.11s and also if this is like mine then I can bet it is a 2-way clutch type!

All you have to do to install this diff, is use the GTR axles and hubs and swap the front flange from your old diff onto this one and also the rear diff cover (if you have an s13).
Again, I have this same setup on my s13 and have pictures incase anyone is interested.

Just thought to share the info incase someone was interested.
Also a free bump GLWS OP
This is a great setup!!

[edmorl]

Originally Posted by Zed Nismo

Just fyi for everybody, this R32 GTR setup is a direct bolt on for the s13. I'm not sure for the s14 but I can vouch for the s13, as I have this same setup on mine. Gear ratio is 4.11s and also if this is like mine then I can bet it is a 2-way clutch type!

All you have to do to install this diff, is use the GTR axles and hubs and swap the front flange from your old diff onto this one and also the rear diff cover (if you have an s13).
Again, I have this same setup on my s13 and have pictures incase anyone is interested.

Just thought to share the info incase someone was interested.
Also a free bump GLWS OP
This is a great setup!!

thanks for the heads up! I thought gtr axles would be too long to fit an s13

[Zed Nismo]

No, actually R32 GTR axles are smaller in length then the s13. But, the output shafts are a little bit longer due to the abs ring, so that makes up for the difference. I believe that's what it was.

[Flashman]

r32 gtr lsd diffs are supposed to have 2 mounting tabs on the top for hicas or something aren't they?

[amreboot]

Interested in axles, PMed.

[edmorl]

all PMs replied.

[edmorl]

Bump to the top

[edmorl]

Up. Still have all of this

[TheRealSy90]

Do the axles not fit into 4 lug s13 hubs?

[edmorl]

Originally Posted by TheRealSy90

Do the axles not fit into 4 lug s13 hubs?

No, you'll need z32 tt / r32 gtr / q45 hubs for these axles since they have bigger splines

[TheRealSy90]

I'm wondering if there is any possible way to retain a 4x114.3 bolt pattern with a hub that will accept these axles. What about the 4 lug hubs off of a base model skyline sedan maybe?

[edmorl]

Originally Posted by TheRealSy90

I'm wondering if there is any possible way to retain a 4x114.3 bolt pattern with a hub that will accept these axles. What about the 4 lug hubs off of a base model skyline sedan maybe?

nah those are the same as s14 ans z32 n/a

you'd have to run 5 lug with these axles unfortunately, unless someone can chime in

[s13 drifta]

R32 GTR axles are 31 spline and 240sx axles are 29 spline, no it will not work.

[TheRealSy90]

Originally Posted by s13 drifta

R32 GTR axles are 31 spline and 240sx axles are 29 spline, no it will not work.

I know, that's why i was wondering if the non GTR 4 lug skylines had the same hubs or not. There's gotta be a 31 spline 4 lug hub off of something
