GonadSX · 11-05-2005, 11:59 PM

ATI Procharger 3-Core Standard intercooler. Commonly found on domestic turbo/supercharged applications (Mustangs, Camaros, etc.)

(Based on my measurements)

Core dimension: 26" X 6" X 3"
Overall dimension: 28.5" x 13" x 3"
Inlet/Outlet dimension: 3" O.D. / 2.74" I.D.

http://www.procharger.com/intercoolers.shtml

gorgasm · 11-06-2005, 12:18 AM

looks different. not bad though.

DrtyRat · 11-06-2005, 12:20 AM

A 240 with a fmic? I see one everyday. Someone tell me what I missed.

GonadSX · 11-06-2005, 12:32 AM

Quote:

Originally Posted by DrtyRat

A 240 with a fmic? I see one everyday. Someone tell me what I missed.

Join Date: Jan 2005

Andrew Bohan · 11-06-2005, 01:03 AM

having an intercooler like that increases the internal flow area so it has lower pressure loss.

hella short tubes > fewer long tubes

SoSideways · 11-06-2005, 01:04 AM

Yeah seriously, I don't see why that's so special... Yeah, it's custom, but it's better... I mean, are you trying to make fun of the guy (directed to thread starter) or giving him props?

krustindumm · 11-06-2005, 01:20 AM

Quote:

Originally Posted by i'm driftaholic

having an intercooler like that increases the internal flow area so it has lower pressure loss.

hella short tubes > fewer long tubes

Got proof?

Irukandji · 11-06-2005, 01:29 AM

Quote:

Originally Posted by krustindumm

Got proof?

got common sense?

That sort of looks like the supercharger fmic's that come with HKS supercharger kits... i dont know maybe im just hallucinating.

that180guy · 11-06-2005, 02:33 AM

yeah man, that fm looks different....vertical fin layout stead of horizontal?
sum one clue me in on that....

GonadSX · 11-06-2005, 08:13 AM

Well I guess if you want proof...

Straight outta Corky Bell's book.

That's why I bought this. I wanted something different and because Corky Bell owns me.

**Phlip** · 11-06-2005, 08:21 AM

Now I SUGGEST thgat you add some details IN TEXT about that intercooler, such as brand, any other specifications, where it came from before I decide to merge your first post into the picture thread and delete every other one in this thread.

GonadSX · 11-06-2005, 08:37 AM

Quote:

Originally Posted by PHLIP

Now I SUGGEST thgat you add some details IN TEXT about that intercooler, such as brand, any other specifications, where it came from before I decide to merge your first post into the picture thread and delete every other one in this thread.

Done and done.

theicecreamdan · 11-06-2005, 10:07 AM

oooh it looks like a cool front grill thing, STEALTH

smellslikecurry · 11-06-2005, 12:25 PM

its ugly but functional...cant have everything

**ThatGuy** · 11-06-2005, 12:32 PM

^^Matter of opinion. I think it looks pretty nice. I'd paint it black just like any other FMIC I plan on getting though.

trsilvias13 · 11-06-2005, 01:25 PM

my friend with a dsm has it like that.. but for the 240sx which covers the entire front.. looks like a radiator. It might be good for a sleeper type thing

meatish · 11-06-2005, 01:33 PM

Quote:

Originally Posted by GonadSX

Ur 240 looks like this:

Great idea though, let us know what it feels like.

Andrew Bohan · 11-06-2005, 01:51 PM

here's some math

Quote:

Originally Posted by GonadSX

Core dimension: 26" X 6" X 3"

filling that with horizontal tubes gives 6" x 3" = 18 square inches of flow area, with tubes 26" long

vertical tubes gives 26" x 3" = 78 square inches of flow area, with tubes 6" long.

GonadSX · 11-06-2005, 02:18 PM

Nah I think it looks more like this

The reason I did this was I'm just trying different things; plus I follow Corky's book like if it was the bible.

Wonder if anyone noticed that little radiator thing behind the intercooler (and in front of the stock radiator).

**Phlip** · 11-06-2005, 02:21 PM

Quote:

Originally Posted by GonadSX

Wonder if anyone noticed that little radiator thing behind the intercooler (and in front of the stock radiator).

Yeah, I noticed that too, is this car an automatic, or is that cooling something other than an automatic transmission?

GonadSX · 11-06-2005, 02:24 PM

Quote:

Originally Posted by PHLIP

Yeah, I noticed that too, is this car an automatic, or is that cooling something other than an automatic transmission?

Nope. Oil cooler.

Setrab unit i got off eBay a while ago, and a PermaCool oil relocation kit (also off eBay). Oil cooler is: 11" x 7.5" x 1.75"

And yes, it goes: Engine -> Oil cooler -> Filter -> Engine
I wanted Engine -> Filter -> Cooler -> Engine but for some reason it wasn't feasable (I forget).

axiomatik · 11-06-2005, 10:07 PM

Quote:

Originally Posted by i'm driftaholic

filling that with horizontal tubes gives 6" x 3" = 18 square inches of flow area, with tubes 26" long

vertical tubes gives 26" x 3" = 78 square inches of flow area, with tubes 6" long.

Well, typical intercoolers w/ horizontal tubes are generally taller than 6 inches. You also have the airflow making to 90* turns in the intercooler. I'm not saying that horizontal tubes are better, I just want to point out that this intercooler probably isn't 4 times better than typical intercoolers, as your math suggests.

chmercer · 11-06-2005, 10:37 PM

gonadsx - where did you get thoes bronze AN fittings? are they cheaper than aeroquip stuff? i need some cheap barb conversions for a setrab core myself. please more info!

Andrew Bohan · 11-07-2005, 01:21 AM

Quote:

Originally Posted by nbrindley

Well, typical intercoolers w/ horizontal tubes are generally taller than 6 inches. You also have the airflow making to 90* turns in the intercooler. I'm not saying that horizontal tubes are better, I just want to point out that this intercooler probably isn't 4 times better than typical intercoolers, as your math suggests.

i'm not saying that since the flow area is 4 times greater, the intercooler is 4 times better. of course the 90º bends and long distance the air has to travel across the length of the core before it even gets to the far end will reduce its performance.

GonadSX · 11-07-2005, 05:22 AM

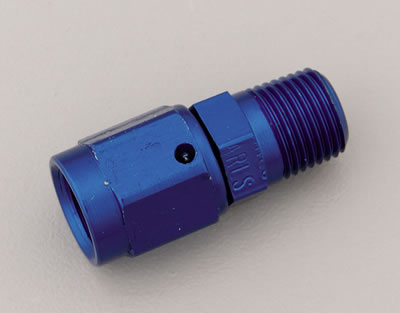

The oil cooler has -10AN male ends. I ended up getting -10AN FEMALE to 3/8" MALE Earl fittings (the blue fittings you see).

The rest of the bronze fittings are just male and female 3/8" fittings from Home Depot.

http://store.summitracing.com/partde...=KeywordSearch

DrtyRat · 11-07-2005, 07:56 AM

Quote:

Originally Posted by GonadSX

ATI Procharger 3-Core Standard intercooler. Commonly found on domestic turbo/supercharged applications (Mustangs, Camaros, etc.)

(Based on my measurements)

Core dimension: 26" X 6" X 3"
Overall dimension: 28.5" x 13" x 3"
Inlet/Outlet dimension: 3" O.D. / 2.74" I.D.

http://www.procharger.com/intercoolers.shtml

Now I understand why "you don't see this everyday"

axiomatik · 11-07-2005, 11:18 AM

Quote:

Originally Posted by i'm driftaholic

i'm not saying that since the flow area is 4 times greater, the intercooler is 4 times better. of course the 90º bends and long distance the air has to travel across the length of the core before it even gets to the far end will reduce its performance.

I know you weren't suggesting that, I just thought I would add a clarification for others who might glance at your numbers and assume that this intercooler is four times better.

SimpleS14 · 11-07-2005, 11:47 AM

I wonder if I can still utilize the bumper reinforcement with this IC core. I noticed your BOV is on the cold pipe, notice any difference compared to being on the hot pipe?

edit: where did you buy that IC core?

420sx · 11-07-2005, 12:27 PM

Quote:

Originally Posted by GonadSX

Join Date: Jan 2005

muahahahahaa

EchoOfSilence · 11-07-2005, 05:46 PM

damn physics for being counterintuitive. I would think that more tubes = more pressure loss
