Loofee95SE · 11-06-2005, 01:27 PM

I've just finish install the S-aFCII on my lil bro 95 240, and went according to Apex-i updated wiring for the 95KA, and the only thing it's picking up is the rpm, no throttle, no Air meter, well and ofcourse no Knock. is there anything that I didn't do right??
set up: Hotwire, 5in 5 out, 1:1, 4 with arrow pointing up, and the ground is brown towrd ECU with the black ground and inch apart towrd the firewall.

I'VE search and came up emthy handed. so help me out. Thanks in advance. C

Loofee95SE · 11-06-2005, 02:49 PM

need help please. anybody?

Tenchuu · 11-06-2005, 02:52 PM

you did use the US updated wireing chart right??? also you did make SURE that the wireing chart above was held in the right position (easy for it to be upside down) and alos make sure that your grounds have the proper spaceing... 1"apart i belive on the 2 grounds.

Loofee95SE · 11-06-2005, 03:34 PM

yeah, like i said the rpm is reading ok, and i check the wiring color from fsm, and it match.. I'm just bumb, and yes the ground is proper space. C

Tenchuu · 11-06-2005, 07:28 PM

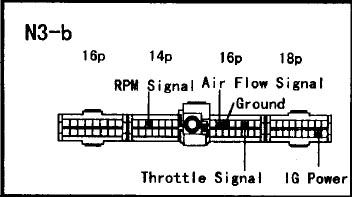

all i can say is maby a loose wire connections??? it's kinda one of those hit or miss things. if the numbers are off it's settings, but since you said there are none i will assume you already have checked that. just checked, and the S13 US models use the APexi N3-B wireing diagram. here is the diagram you need to use, forget the FSM color guessing.

double check on that, if it still shows nothing, is set right, and hooked up to that diagram, you maby have a fubar SAFC
