IN OS Giken TS2BD AND TS2B Clutches for SR20DET, nismo pilot bearing, Titanium Bolts

[JSimpson]

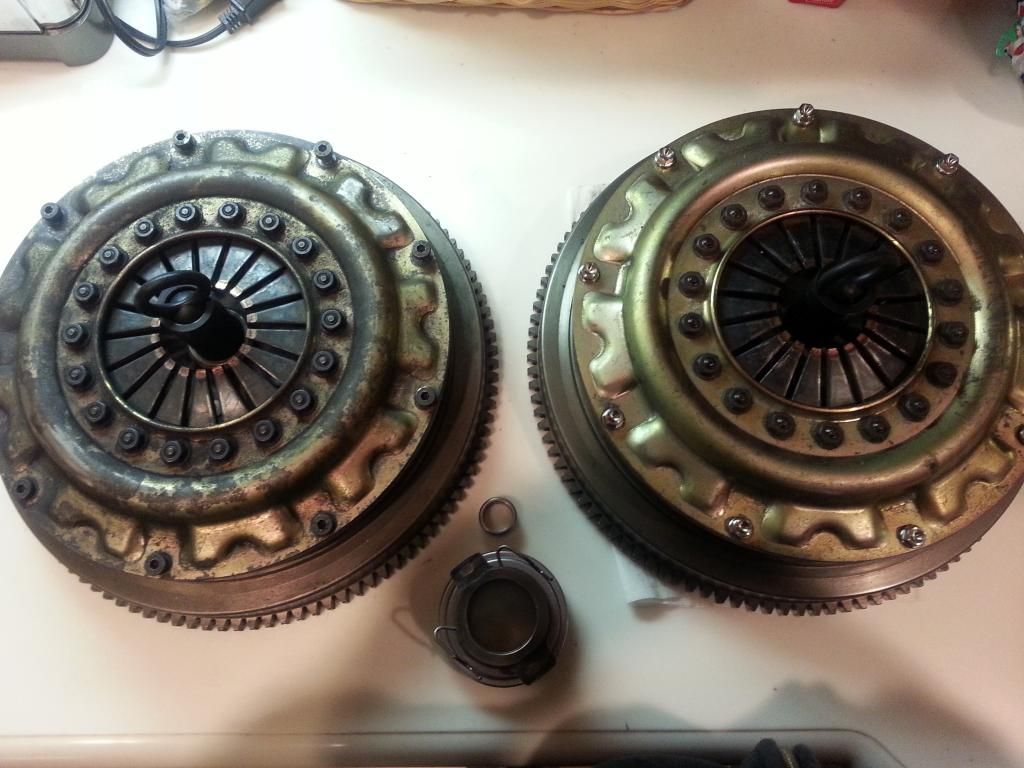

2 OS Giken Clutches for SR20DET. TS2B (Left) and TS2BD (Right)
Will Ship. If asking price is met I will throw in New Nismo Roller Pilot bearing and Titanium clutch cover bolts. First clutch to sell gets the OS release bearing and sleeve. Obviously both clutches come with the flywheels.

-TS2BD, very low mileage, Brand New sprung hub discs, fresh plates. $old

-TS2B, has about 6,000 miles on it, street and drag use, it needs at least 1 disc as one is older and cracked. Does not need full rebuild, it still bit like the day it was new when I pulled it out of my drag car, however it could use a full rebuild if you want peace of mind. $350obo

I am selling these because I'm going triple disc to hold 1000hp, not because there is any issue with the twins, they never slipped on me once and drove very smooth.

-OS Giken Release sleeve and bearing, less than 1000 miles

-Brand New Nismo roller pilot bearing $15

-Titanium clutch cover bolts (9), virtually weightless, helps engine response, aerospace grade with proper grip length, use 8mm socket instead of allen to get more accurate torque spec (got sick of using allen wrenches and replacing the bolts). Can be torqued/used infinite times. $50
[IMG][/IMG]

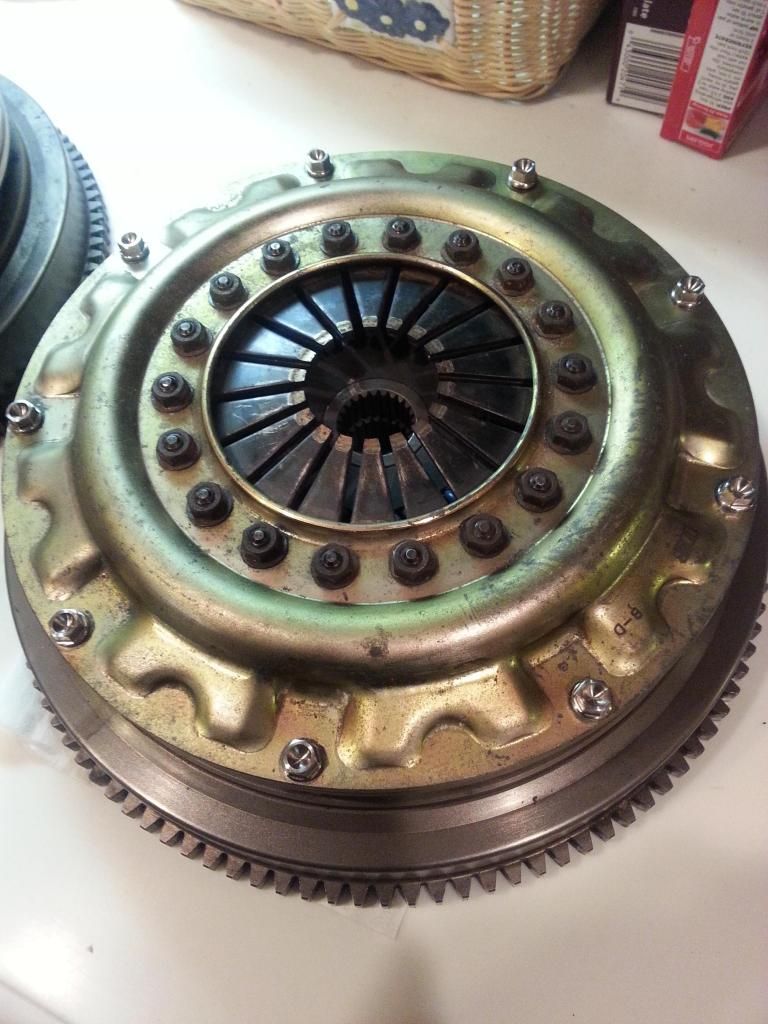

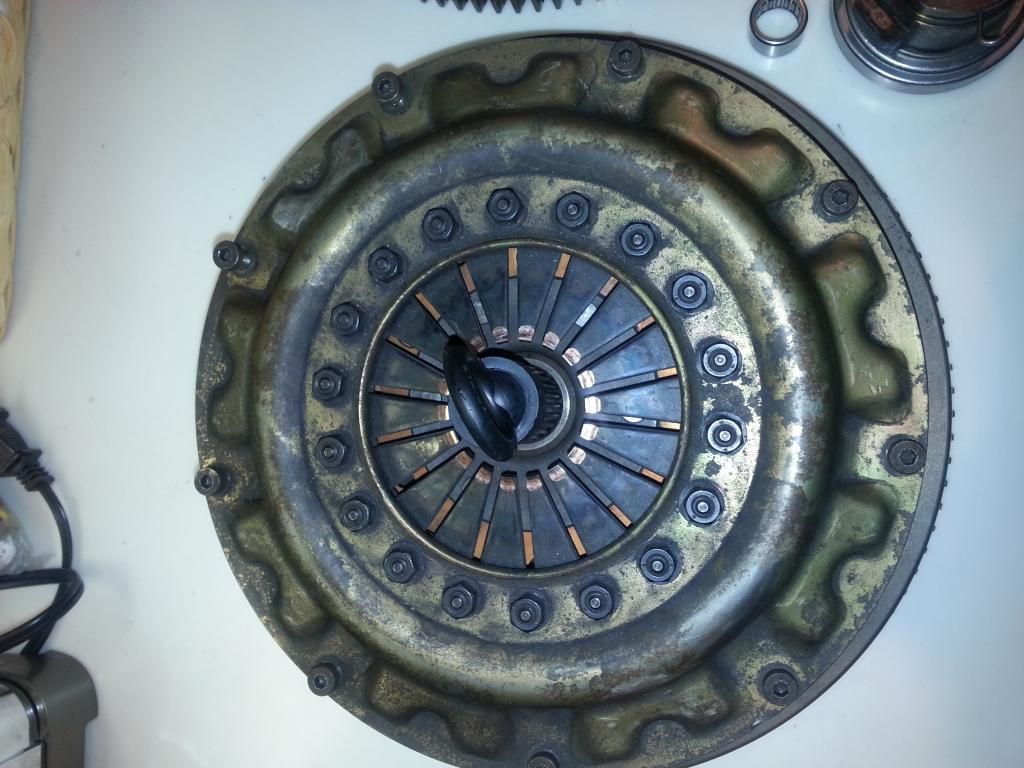

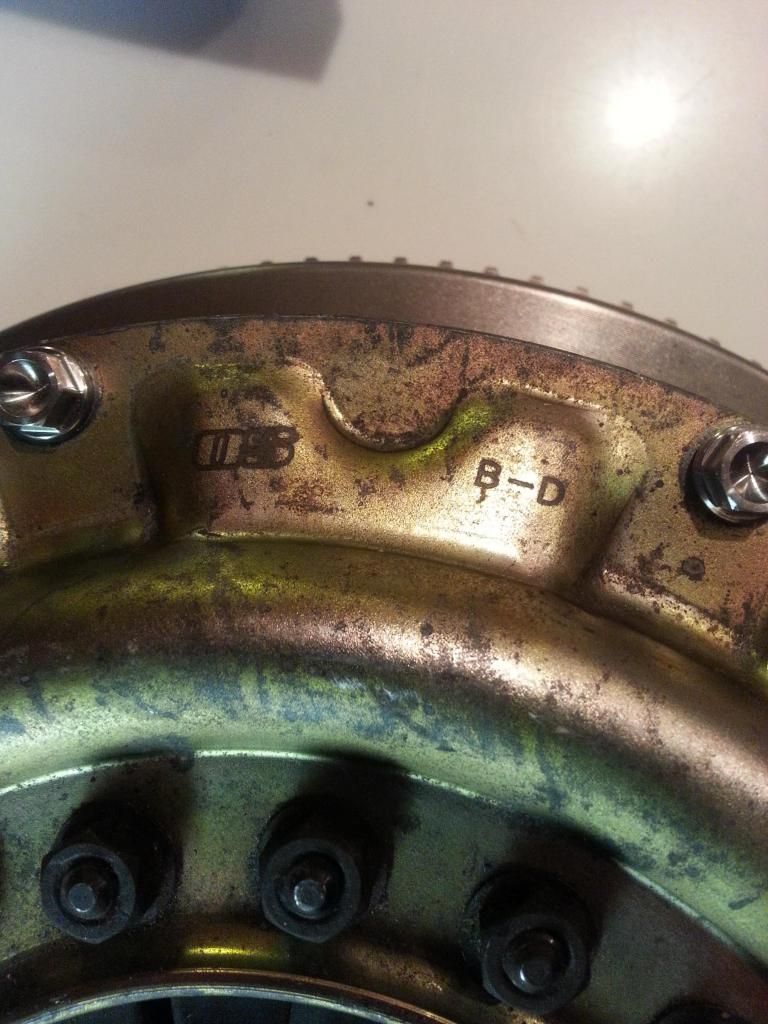

OS Giken TS2BD first
[IMG][/IMG]
[IMG][/IMG]

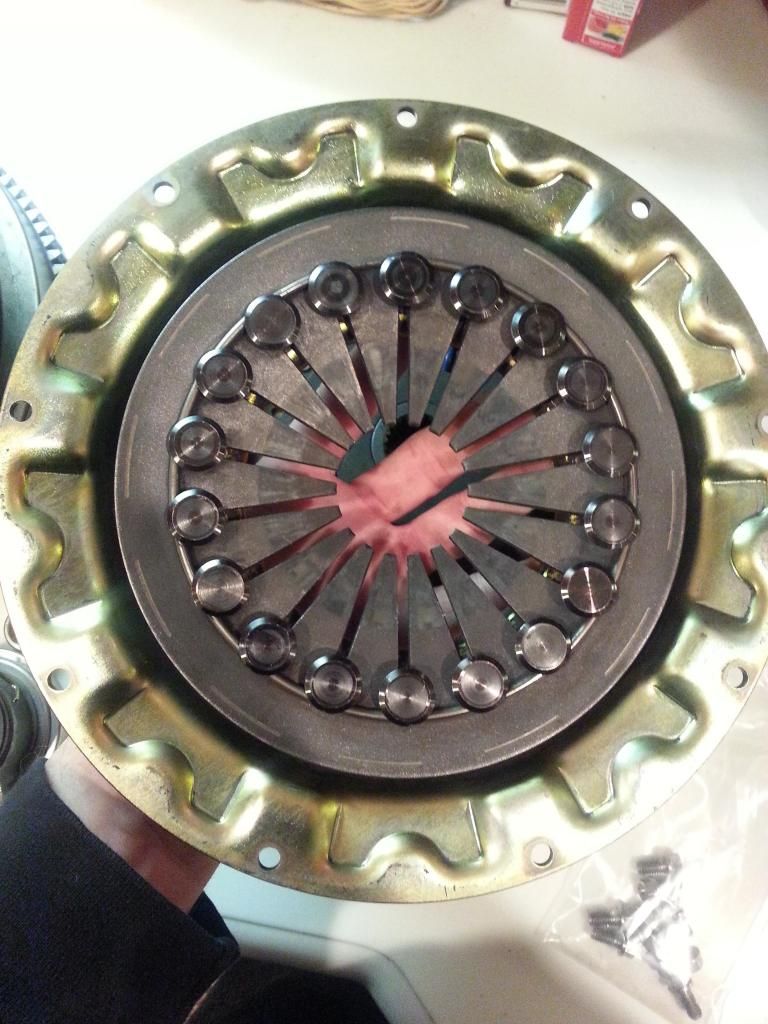

back side of clutch cover
[IMG][/IMG]

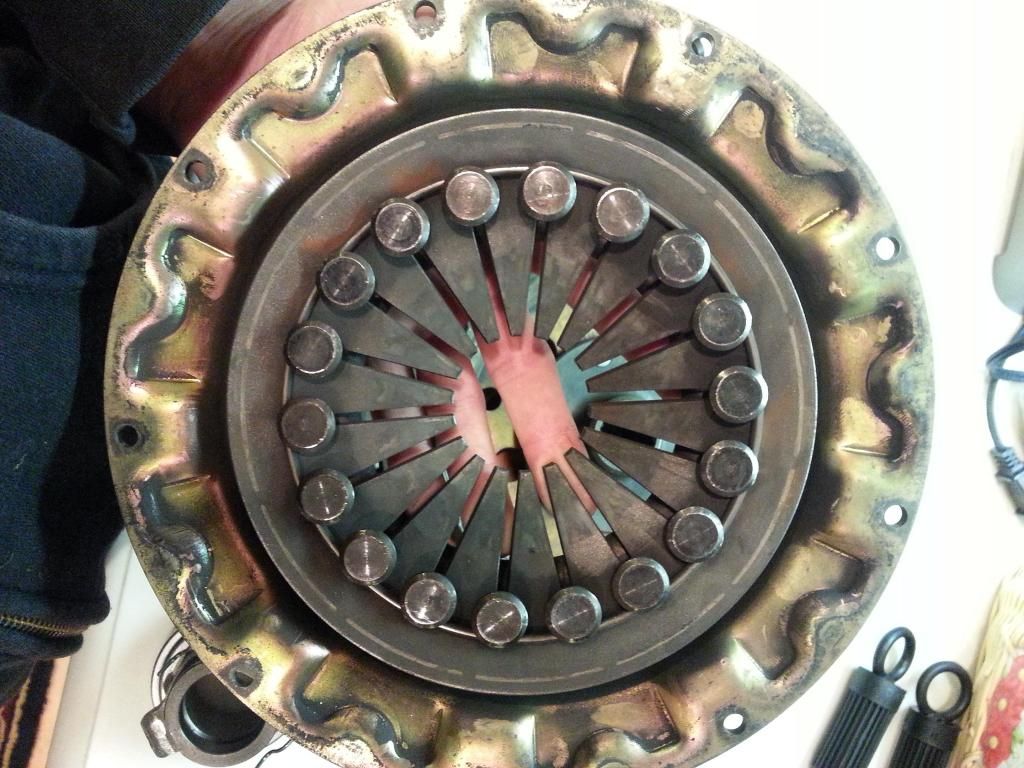

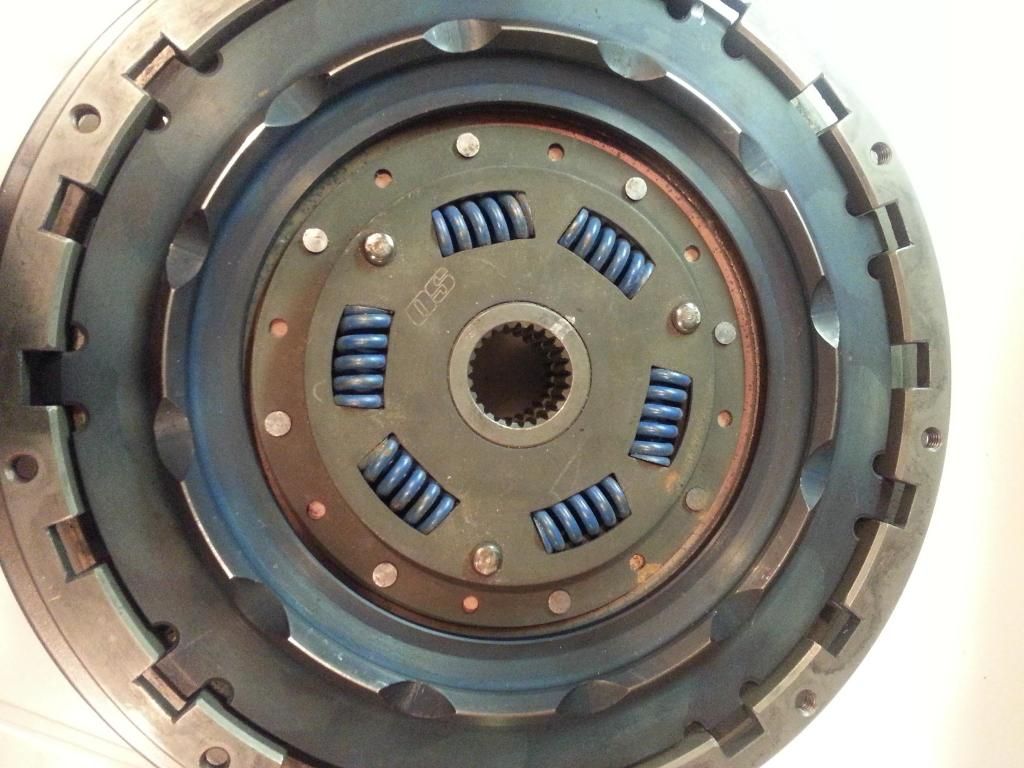

Under clutch cover, top of stack, top of pressure plate
[IMG][/IMG]
back side of pressure plate
[IMG]

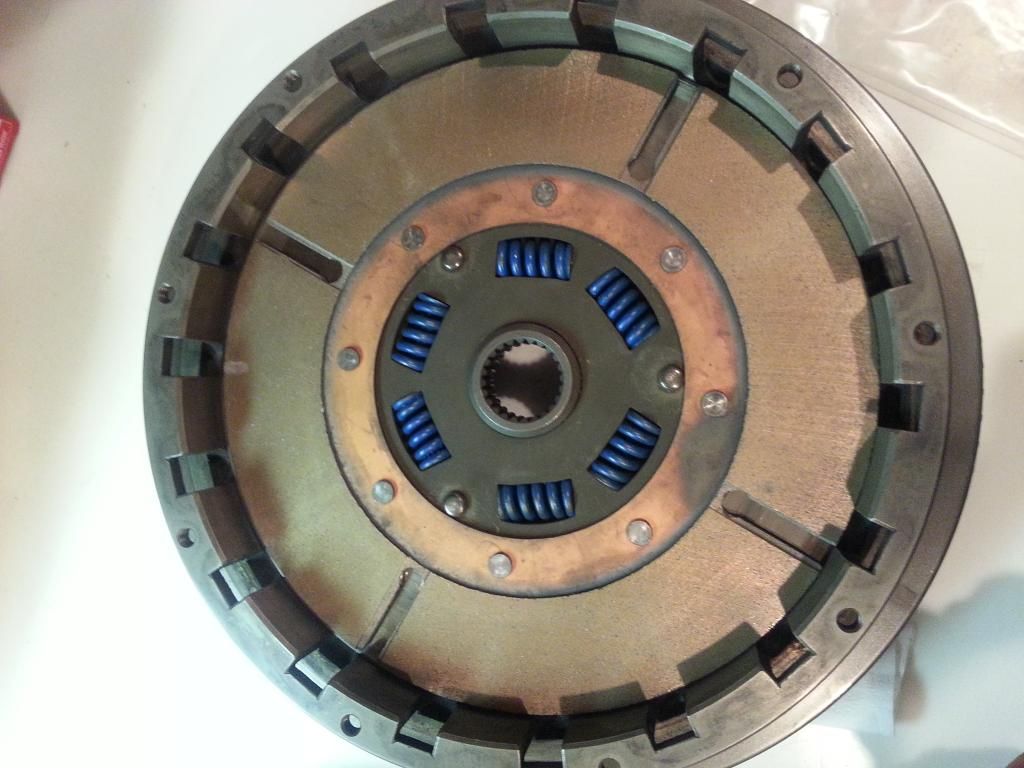

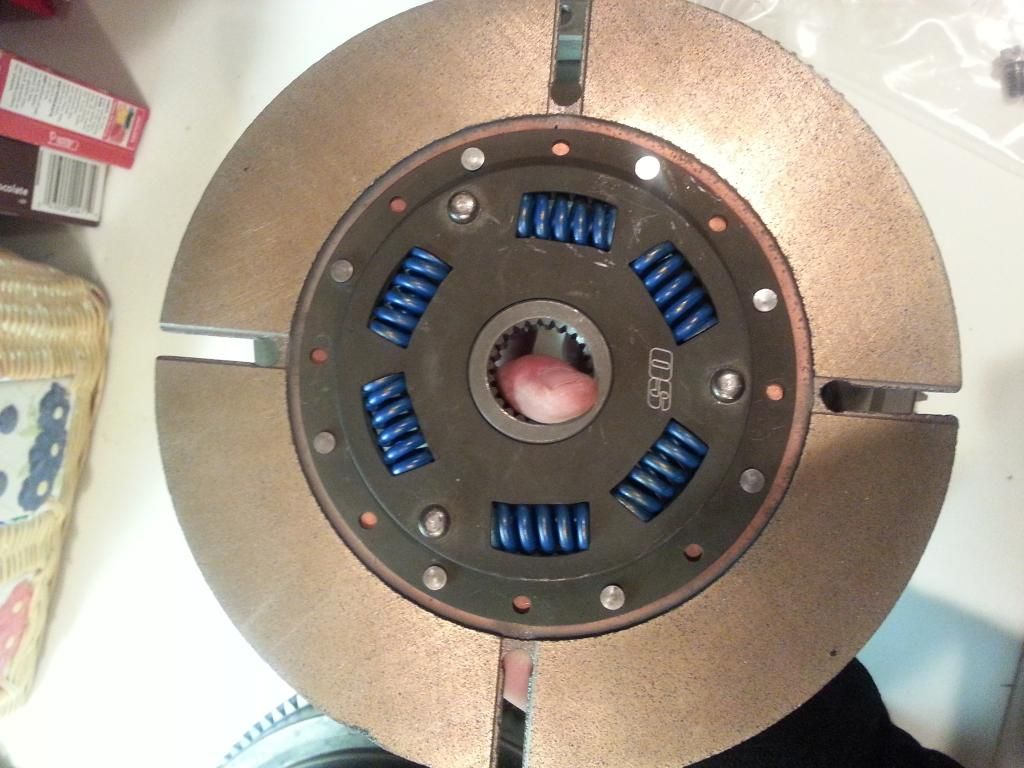

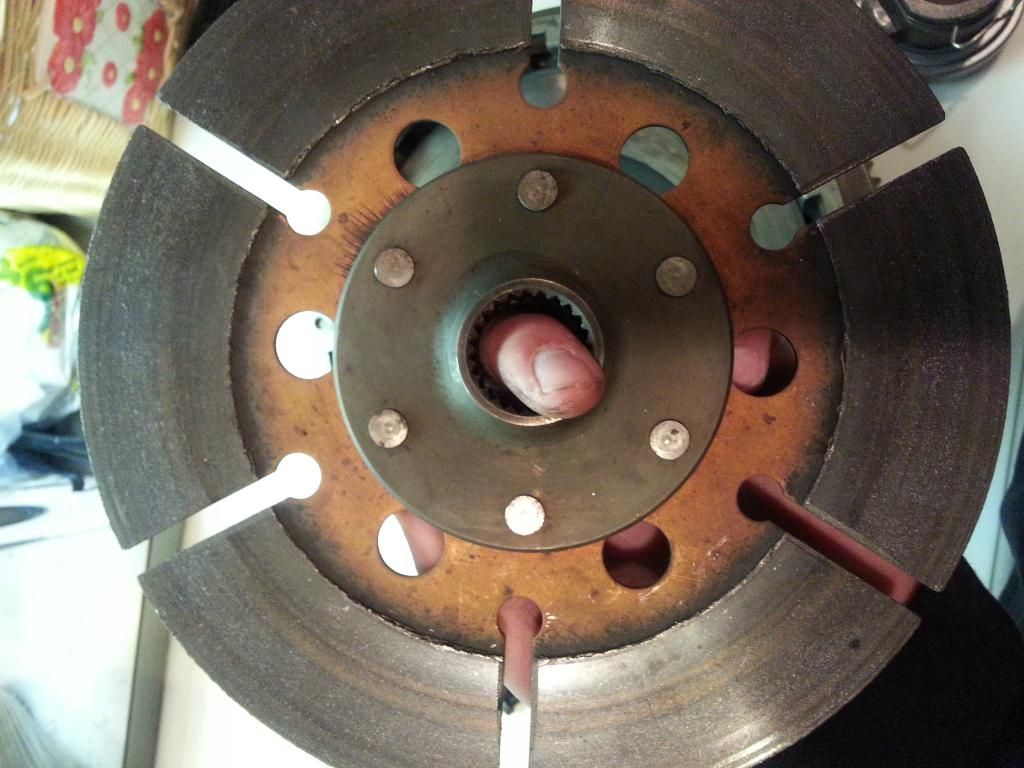

Disc 1
[/IMG]

back side of disc 1

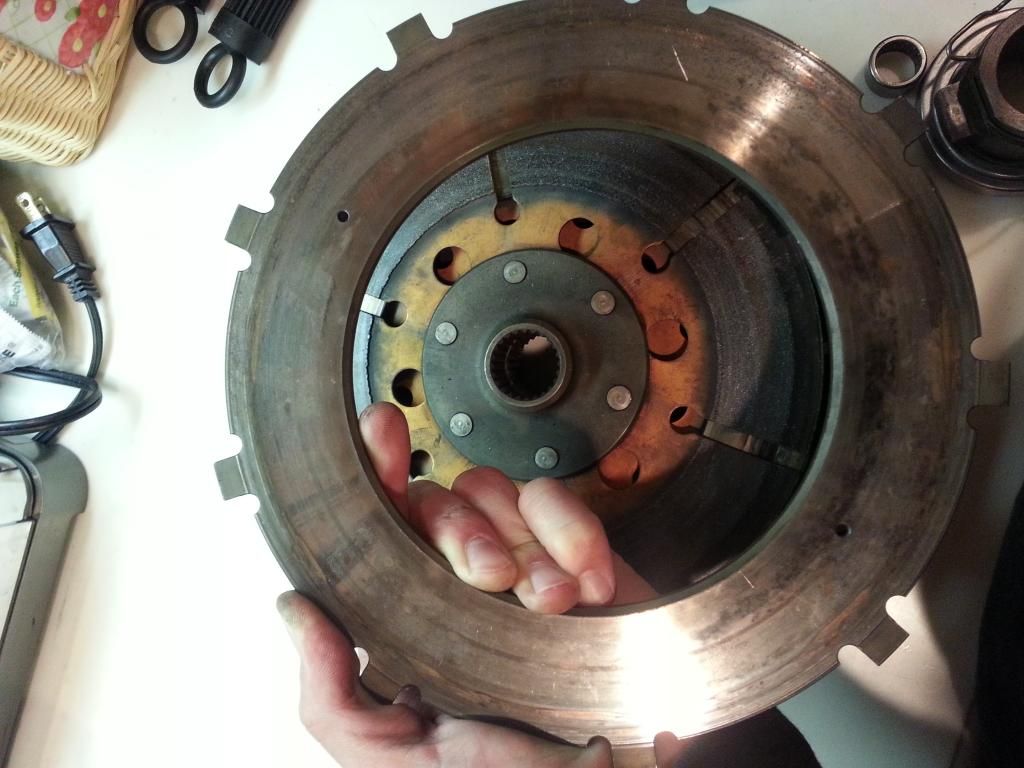

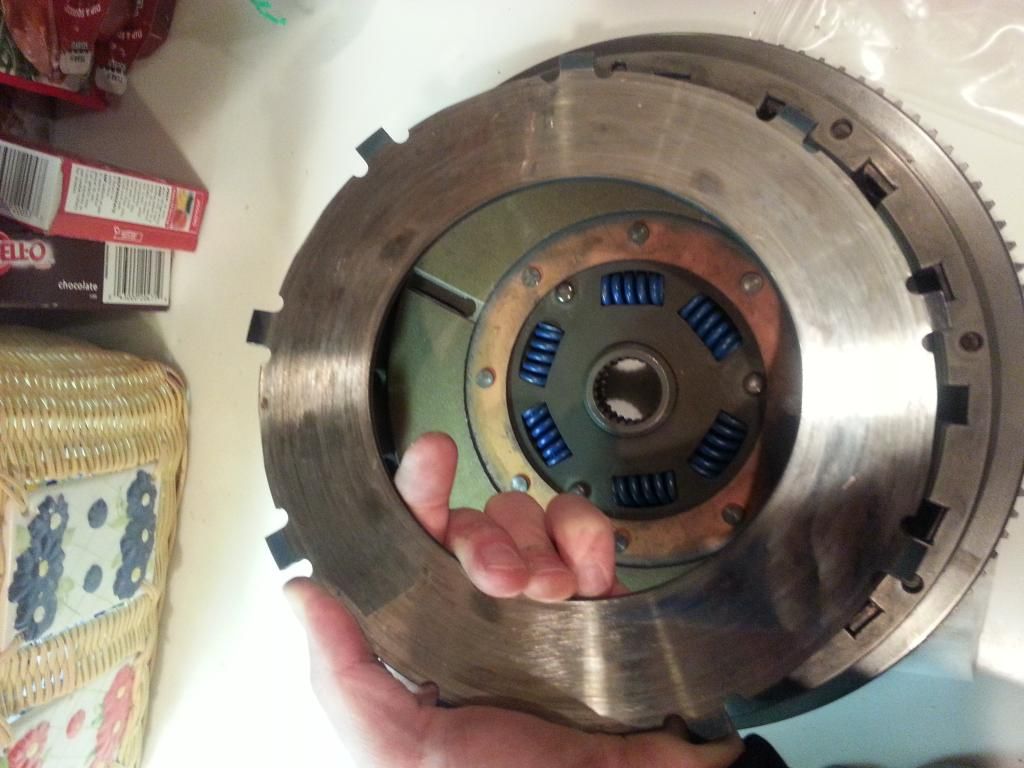

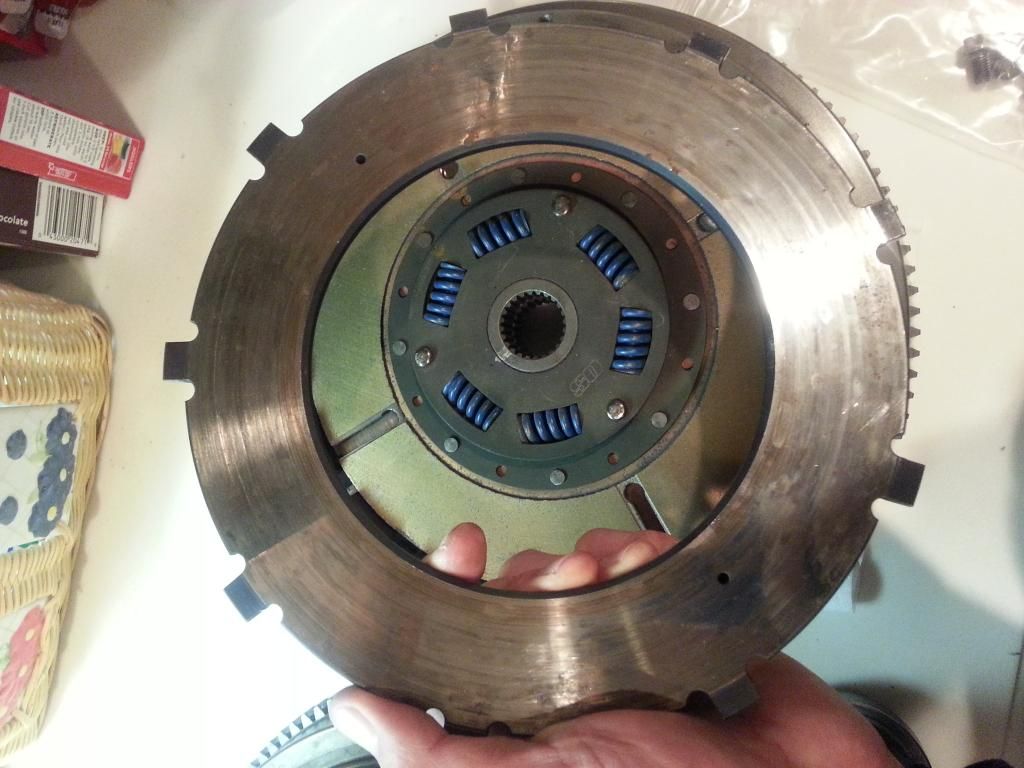

Floater plate

back side of floater plate

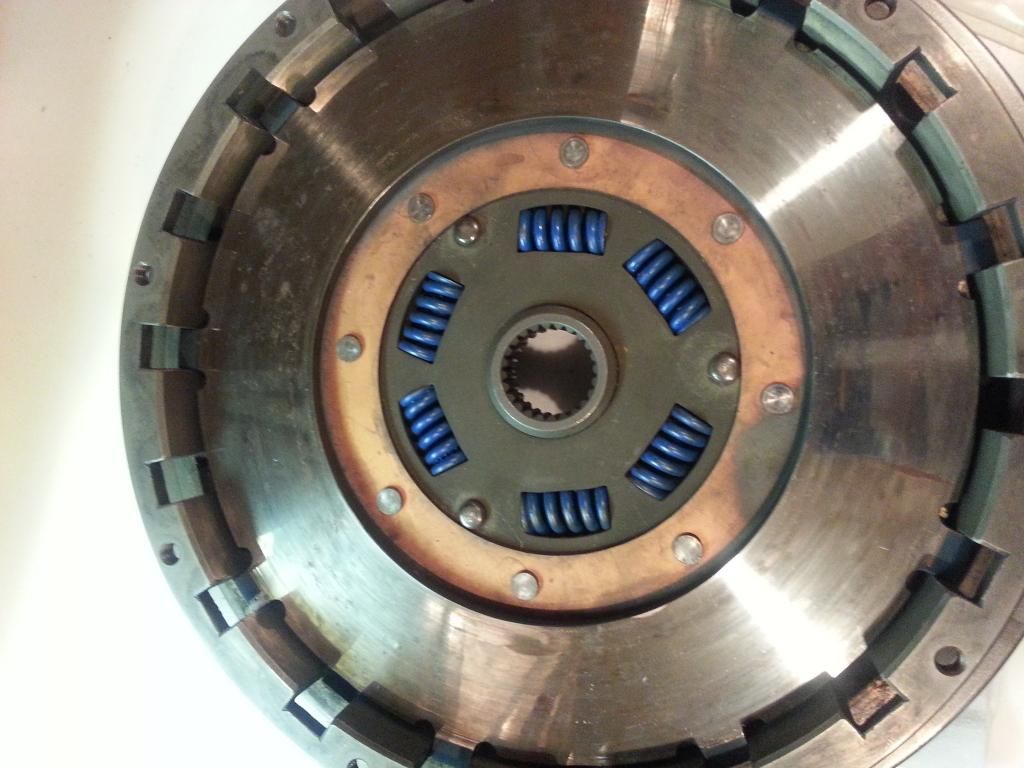

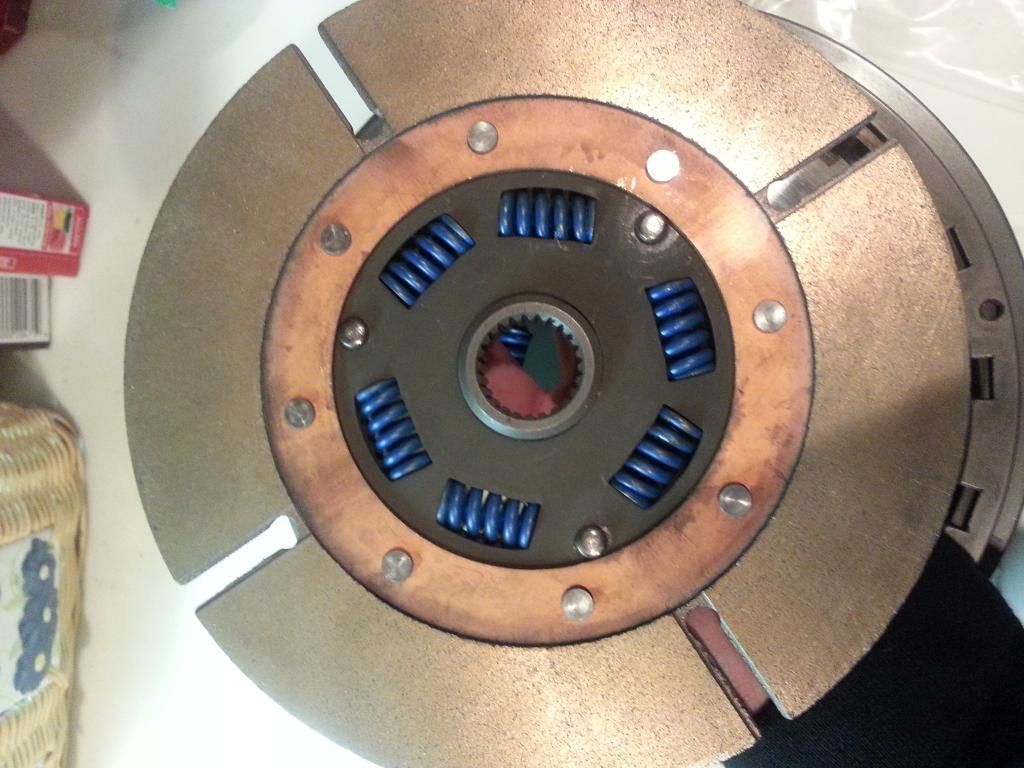

Disc 2

Back side of Disc 2

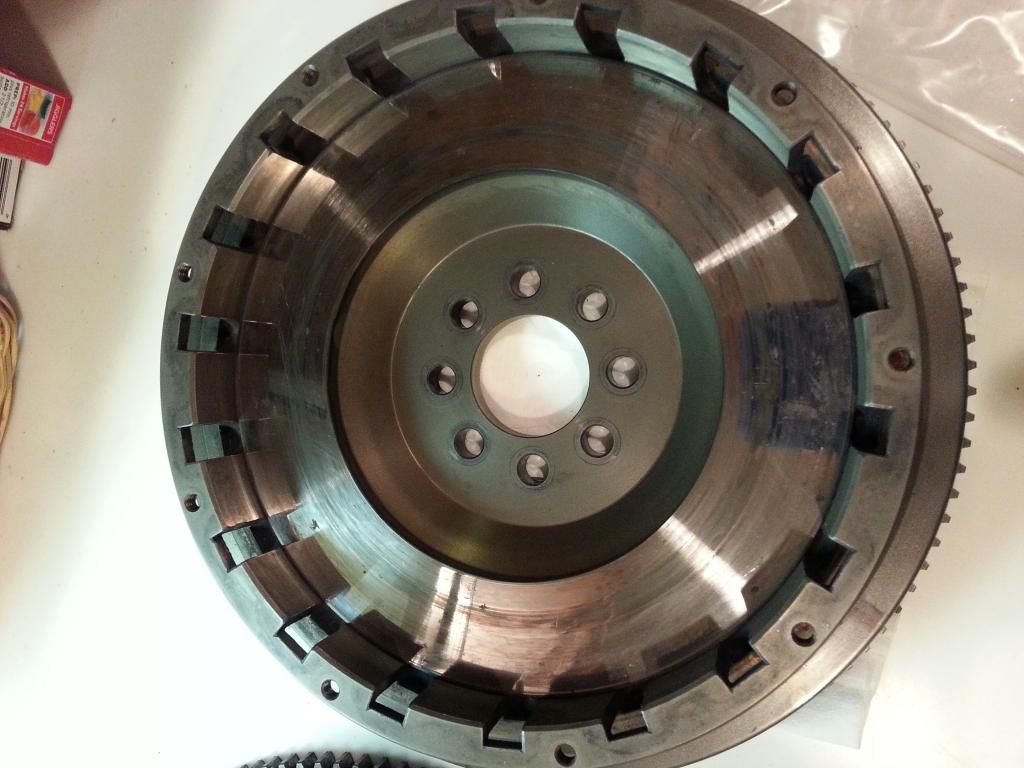

Flywheel/basket

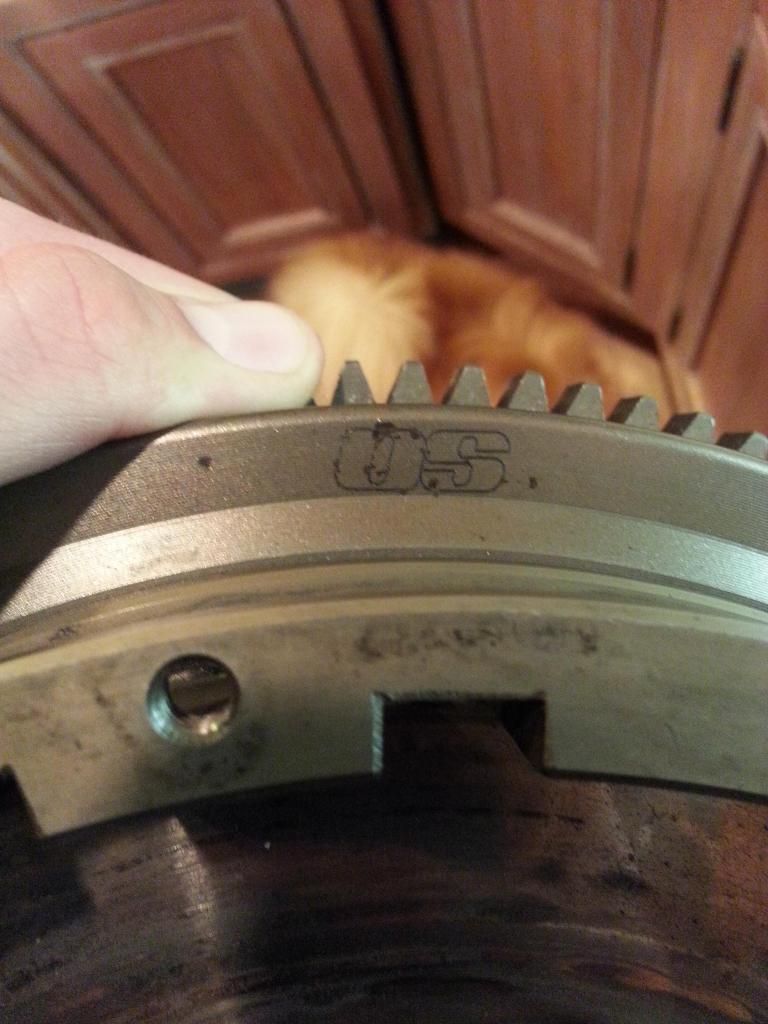

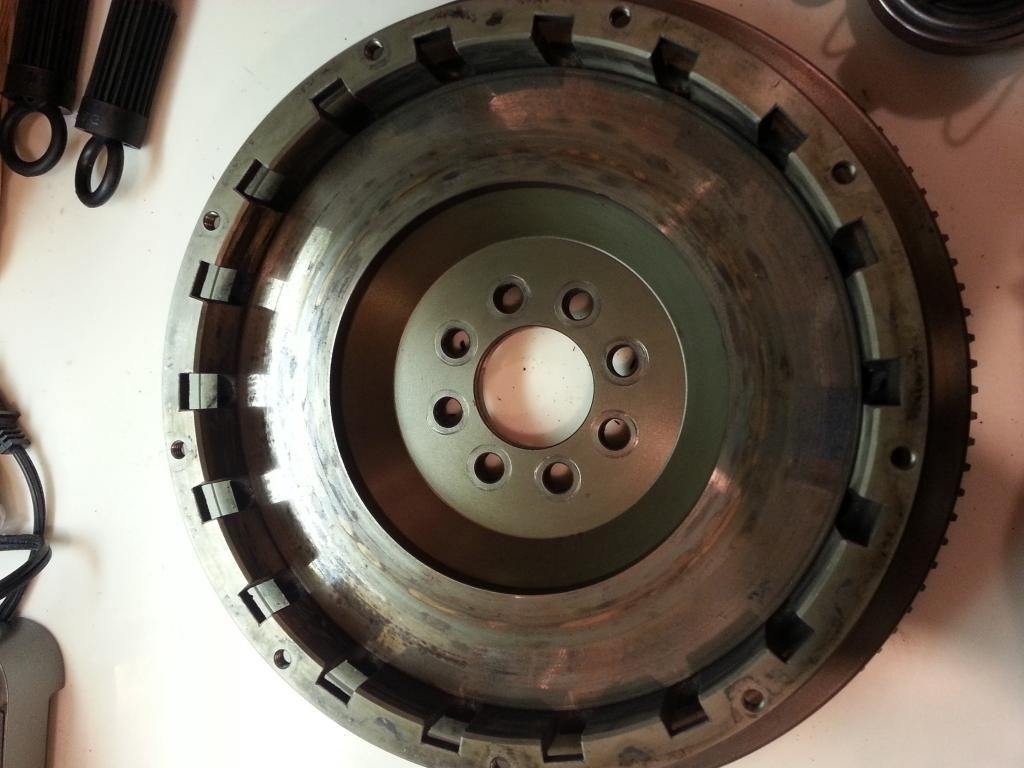

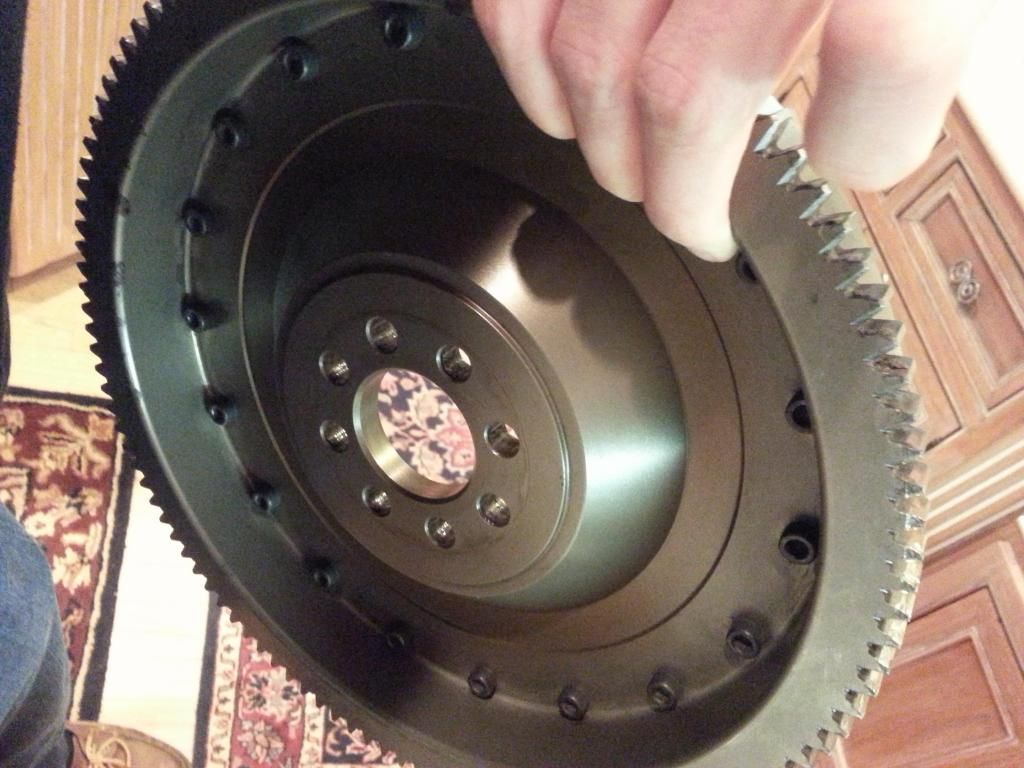

Flywheel

Flywheel


Now for the TS2B
Clutch cover

Back side of clutch cover

Top of stack/pressure plate

Back side of pressure plate

Disc 1

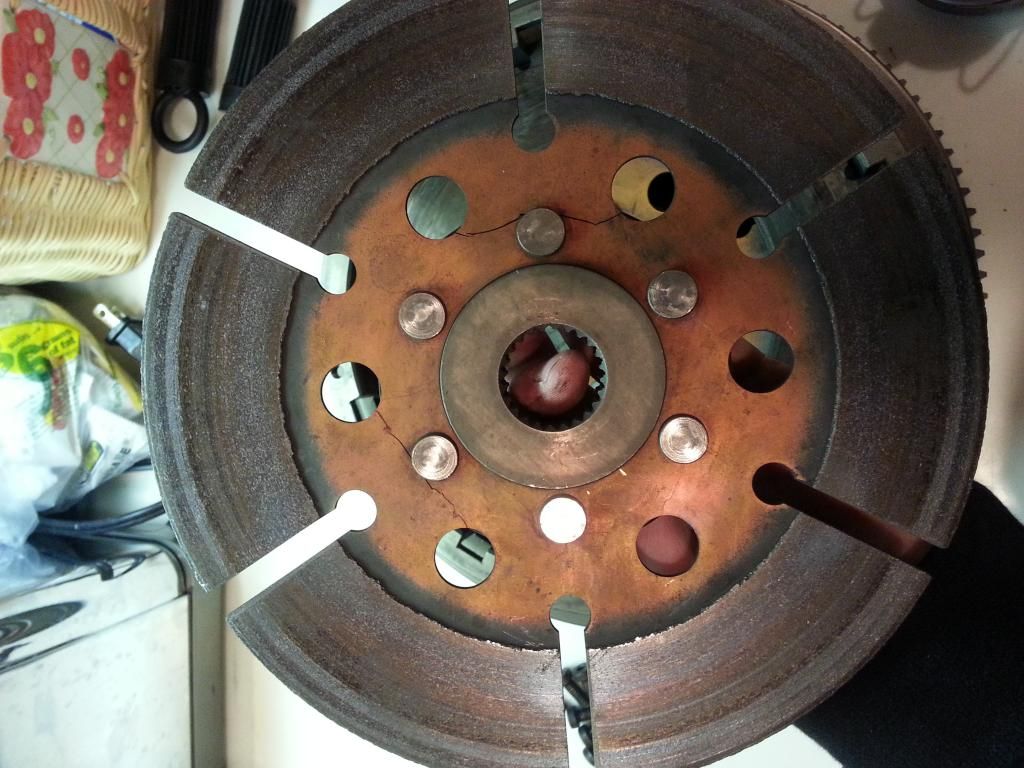

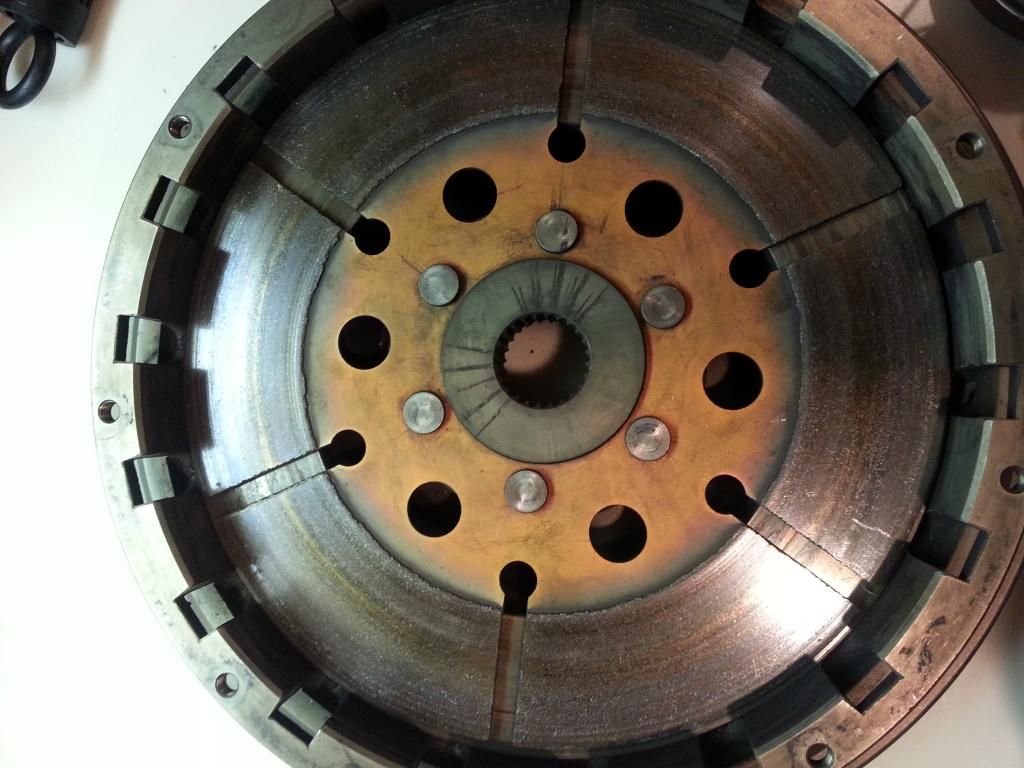

Back side of Disc 1 (NOTE: 2 cracks, this disc is thin and needs to be replaced)

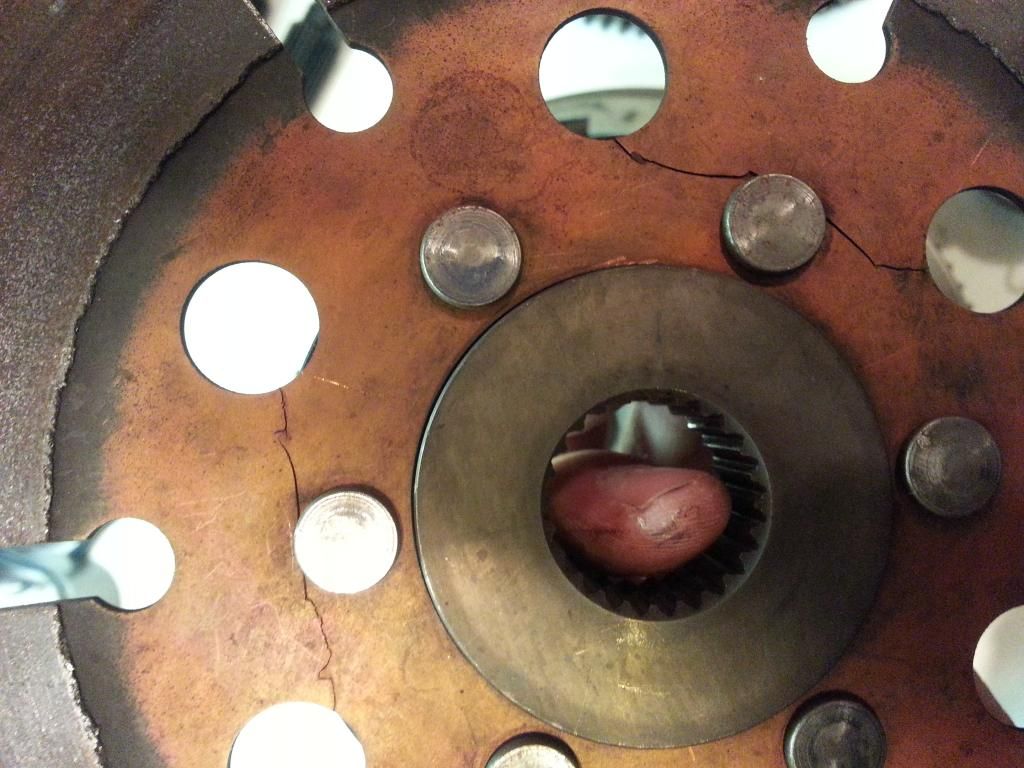

Zoomed in on cracks on Disc 1

Floater plate

Back side of floater plate

Disc 2

Back side of Disc 2

Flywheel/basket

Flywheel

Flywheel

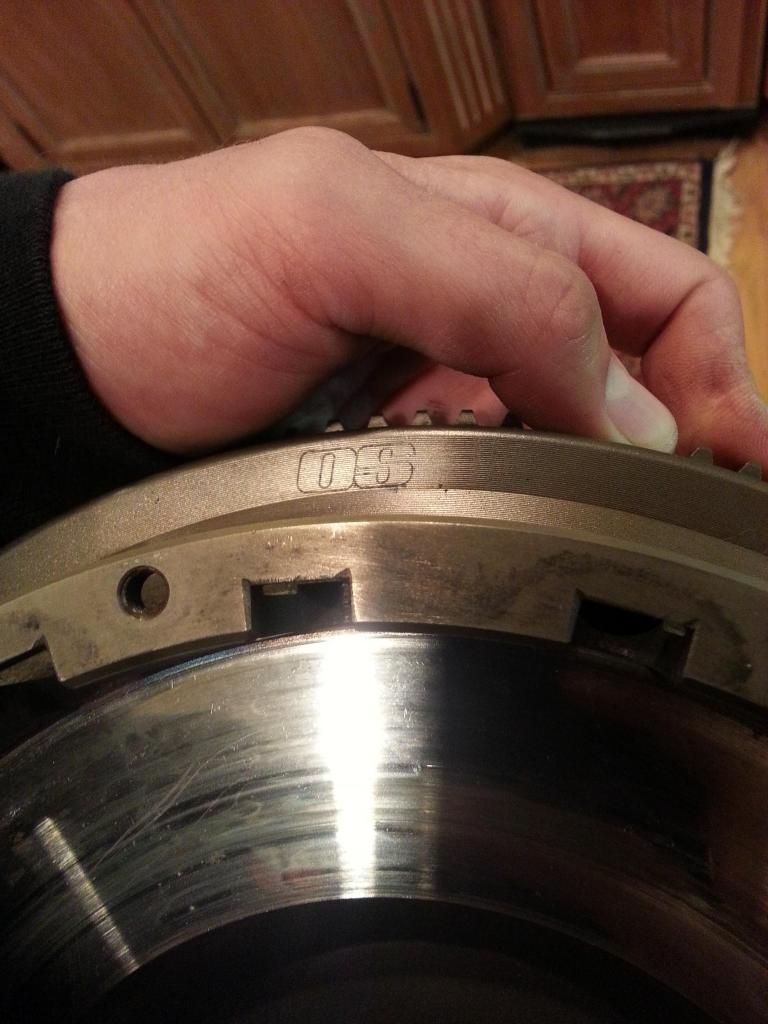

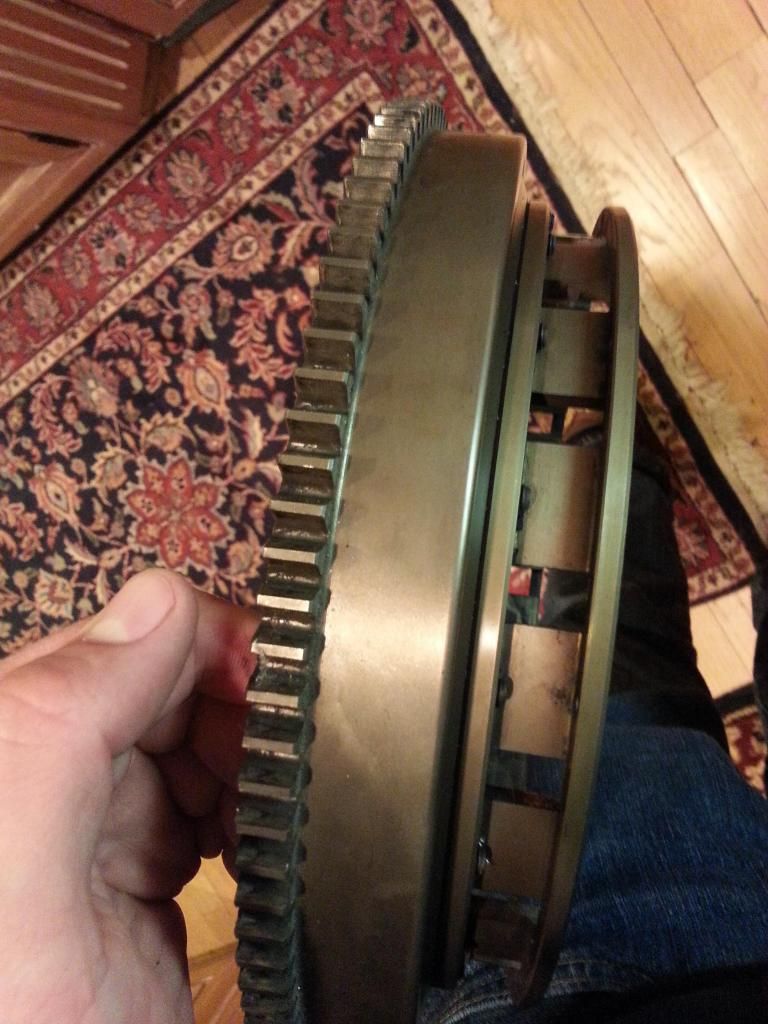

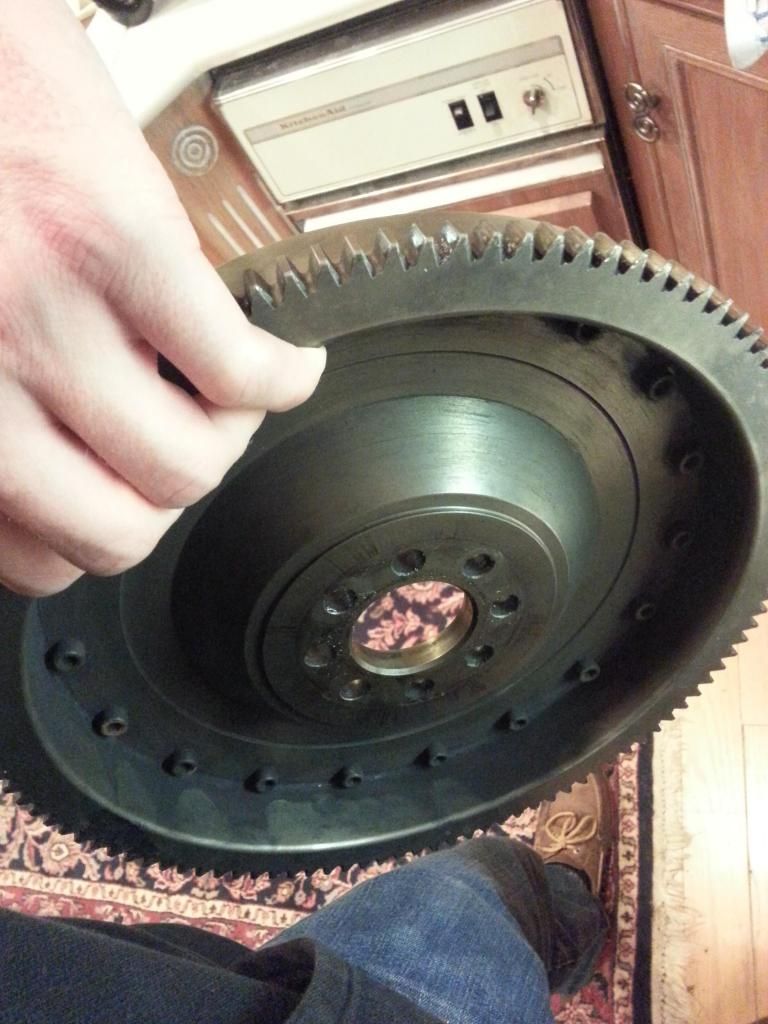

Flywheel/basket side view


Clutch Measurements:
-----------------TS2BD-------TS2B
Pressure plate----12.95mm----12.99mm
Disc 1-----------4.06mm-----3.47mm
Floater plate------4.45mm-----4.50mm
Disc 2-----------4.05mm-----3.20mm (Cracks)

*New Discs are 4.05mm, metal to metal is 2mm
