S15 gauge cluster installed - Zilvia.net Forums | Nissan 240SX (Silvia) and Z (Fairlady) Car Forum

xsparc · 11-08-2007, 09:43 AM

I just finnished making a siginal converter for the speedo and wired everything in my car last night. Everything works good, i even made the speedo read in mph not kph.

If there is any interest i can make a writeup with schematics on how to do it.

murda-c · 11-08-2007, 09:45 AM

or pix...........

spg240sx · 11-08-2007, 09:46 AM

definitely pics! I'd like to see it

240trainee · 11-08-2007, 09:48 AM

schematic would be cool, pictures of how you made it not fit like ass would be better.

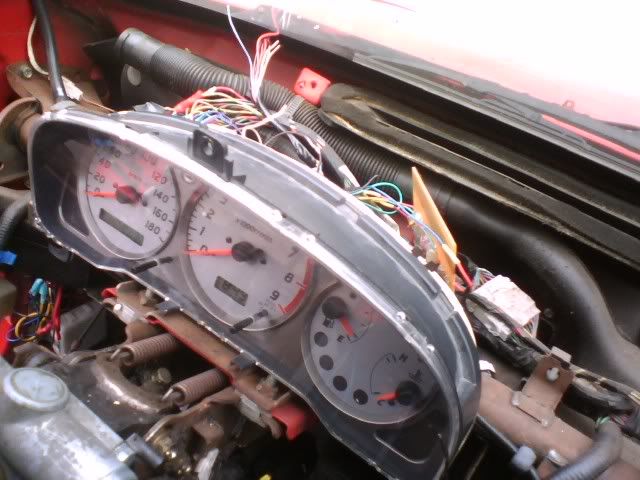

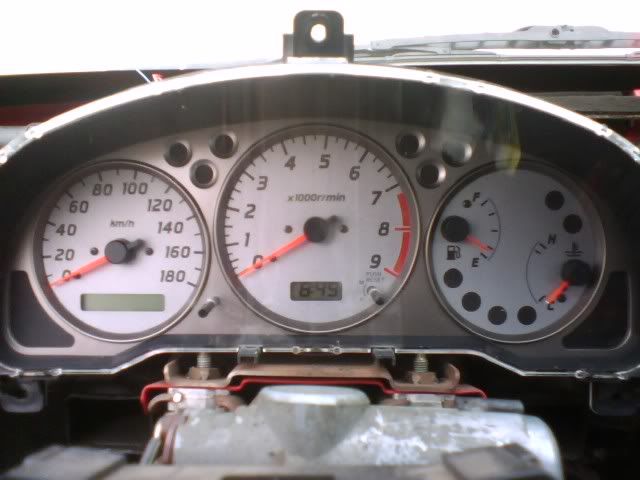

xsparc · 11-08-2007, 09:58 AM

xsparc · 11-08-2007, 10:01 AM

Everyone knows its not a direct drop in, you have to cut your dash and bezel and mold everything back in.

I just havnt gotten to that part yet

koukimonster139 · 11-08-2007, 10:01 AM

damn that was really informative.

.......

xsparc · 11-08-2007, 10:12 AM

damn you people are harsh. now i remember why i stoped posting here

anyway here is the schematic

jon_mr2 · 11-08-2007, 10:15 AM

Quote:

Originally Posted by xsparc

I just finnished making a siginal converter for the speedo and wired everything in my car last night. Everything works good, i even made the speedo read in mph not kph.

If there is any interest i can make a writeup with schematics on how to do it.

nice job, maybe if this turns out okay ill go and try it

xsparc · 11-08-2007, 10:42 AM

Part Value

C1 0.01U
C2 0.01U
C2A 1U
C2B 1U
C3 0.1U
C4 1U
C5 0.1U
C6 0.22U
C7 0.22U
C8 0.1U
C9 0.1U
IC1 LM340H-05
IC2 LM340H-12
IC3 74LS109N
IC4 LM331N
IC5 LM2917
R1 100K
R2 10K
R3 100K
R4 470
R5 100K
R6 47
R7 6.8K
R8 10K
R9 6.8K
R10 5K Pot

:NOTE: R10 needs to be adjusted so that the resistance from IC4 pin 2 to GND is 11560 ohms, it may need to be adjusted more or less than this depending on the exact values of the other resistors.

Signal IN = 4.5hz/mph sine wave
Signal Out = 12.5hz/mph 0-5v square wave

If you look at the datasheets for the ICs (google) you can find the formulas on how all the parts interact.

Quigs · 11-08-2007, 10:53 AM

Interesting project. Cant wait to see it installed and finished. Looks like it will work out nice.

bryce with a y · 11-08-2007, 10:54 AM

haha i lol'ed when i saw this pic.

looks like legos...

importdude · 11-08-2007, 10:58 AM

nice job,
mabe u should goin the market of making premade boards for ppl on zil

xsparc · 11-08-2007, 10:59 AM

dont think i have enough parts here at work to do that

B Love · 11-08-2007, 01:36 PM

Whats the advantage to using s15 cluster? Or do you like the look better is that why you did it?

Bobafreak · 11-08-2007, 01:42 PM

I think thats pretty cool. Its very unique. Im not trying to sound like a smartass either. but looking at the schematics.....no thank you. lol

Laxman · 11-08-2007, 02:05 PM

Awesome writeup! Wish I could do the same.

I HAD an S15 cluster, till some dirtbag in SOCAL stole my shit.

Bobafreak · 11-08-2007, 02:07 PM

dont blame socal...blame his parents for not raising him/her right. lol

sideview_180sx · 11-08-2007, 02:13 PM

So did you get the mileage to read as well?? That is a very nice project you have underway. I'm rooting to see the complete finished product

Tenchuu · 11-08-2007, 02:13 PM

Quote:

Originally Posted by Bobafreak

I think thats pretty cool. Its very unique. Im not trying to sound like a smartass either. but looking at the schematics.....no thank you. lol

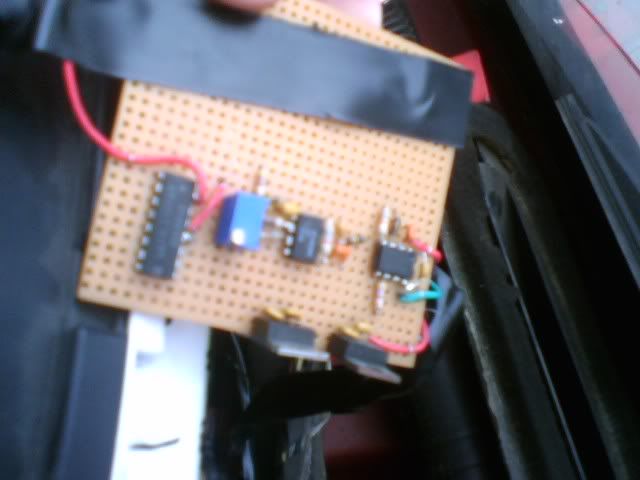

that secmatic is super simple. look at the pic of the board. anyone with a couple of years in electronics experience could make this up for you in under 30 min tops with all the parts. and i bet most of those pars are easy to some by... am i wrong OP?

jackjack · 11-08-2007, 02:25 PM

lookin good. rock on.

240trainee · 11-08-2007, 02:32 PM

Thats fucking badass, that might be an option for my track car where dash fit and finish won't be as big a deal as a street car....

xsparc · 11-08-2007, 02:33 PM

yes it does read MPH even though the meter says KPH
so 20kph = 20mph and 100kph = 100mph and so on

speed sensor = 4.5hz/mph sine wave
s15 cluster input = 12.5hz/number on meter 0-5v square wave
s13 ecu speed input = 0.5hz/mph 0-5v square wave

designing the converter took about 3 days in my offtime at work but building it too maybe 1 hour. my hands are kinda shakey.

the parts are all basic stuff except for the lm2917 and the lm231. i had to order those.

JRas · 11-08-2007, 05:57 PM

very cool can't wait to see it installed in the dash.

xsparc · 11-08-2007, 06:29 PM

ok just got the temp gauge working correctly. a 200ohm resistor needs to be added somewhere between the gauge and the sensor. i put mine about an inch down the wire from the guage.

*brndck* · 11-08-2007, 07:25 PM

you sir, fuxking rock! glad to see someone doing something new and different!

Unit-121 · 11-08-2007, 07:37 PM

Im already liking it!. See how it turns out wen everything is intact.

11-11-2007, 01:18 PM

who wrote/made the schematics?

bRUt@L`S13 · 11-11-2007, 01:22 PM

thats tight... it will look so clean when finished

xsparc · 11-11-2007, 02:26 PM

Quote:

Originally Posted by ixfxi

who wrote/made the schematics?

i did, its just a basic freq to voltage back to freq converter
