Apexi Safc On A Ca18det Wiring? - Zilvia.net Forums | Nissan 240SX (Silvia) and Z (Fairlady) Car Forum

philly blunt · 08-03-2006, 09:59 AM

Ive Searched And Searched And I Cant Find The Wiring Diagram For A 89 S13 With A Ca18det If Anyone Can Send A Link It Be Greatly Appreciated

aNskY · 08-03-2006, 04:29 PM

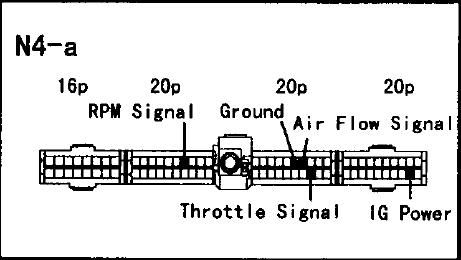

here you go

red - power supply
green - rpm signal
purple - unused / knock sensor
gray - throttle
brown and black are grounds. put brown closer to ecu on the same wire.
pink-airflow output
orange-airflow input

hope i helped

philly blunt · 08-04-2006, 12:47 PM

Quote:

Originally Posted by aNskY

here you go

red - power supply
green - rpm signal
purple - unused / knock sensor
gray - throttle
brown and black are grounds. put brown closer to ecu on the same wire.
pink-airflow output
orange-airflow input

hope i helped

YES THAT HELPS NOW DOES ANYONE HAVE A ECU PINOUT?

204JDM240 · 10-16-2008, 04:26 PM

i dont have a purple wire on my safc :s i have gray, white, blue, yellow, orange, pink, green, red, brown, black can anyone clear this up for me?
