Greddy turbo timer s13 - Zilvia.net Forums | Nissan 240SX (Silvia) and Z (Fairlady) Car Forum

mjr321 · 03-13-2010, 05:43 PM

i got an s14 sr in my s13 and im trying to wire up my turbo timer..anyone know which wire on the harness by color is the speed sensor and parking e brake sensor wires?
tryin to install this and i dont have the 240sx harness for the tt so any help would be appreciated like maybe a complete step by step?

Prez · 03-13-2010, 08:15 PM

your dash harness is still s13 correct?
Black - ground
green - 12 v ignition
blue - accessory
red - 12 v constant
search son...

TheRealSy90 · 03-13-2010, 09:07 PM

Doesn't help that you didn't give him the colors for the ones he asked for...

Prez · 03-13-2010, 09:12 PM

completely my bad...first color is not a good way to solely tap into wiring... but

pin #52=Vehicle Speed Sensor(yellow/green) e brake is a ground just tap into brown wire off ebrake assembly.

s13silvia123 · 03-13-2010, 09:12 PM

go buy this and be done with it simple plug and play.

ProjectSilvia Turbo Timer Harness 240SX '89-'94 - Turbo Timer Harness - ProjectNissan.com

Jhester · 03-13-2010, 09:17 PM

If I am correct, that doesnt include the prewired vss and ebrake wiring. Given the ebrake is the easy one but wat color is the vss on the s13?

Prez · 03-13-2010, 09:19 PM

53 Y/G Vehicle Speed Sensor edited other post

Quote:

Originally Posted by Jhester

If I am correct, that doesnt include the prewired vss and ebrake wiring. Given the ebrake is the easy one but wat color is the vss on the s13?

no it doesnt... has its own harness

so hook up main harness and purple wire off of timer goes to vss yellow/green #52 wire
brown goes to ebrake assembly... you dont need it though for operation.... esp. if you dont always pull up your ebrake..

btw greddy has all this info on their site...

Quote:

Originally Posted by Triple R S13

completely my bad...first color is not a good way to solely tap into wiring... but

pin #52=Vehicle Speed Sensor(yellow/green) e brake is a ground just tap into brown wire off ebrake assembly.

Jhester · 03-14-2010, 07:49 PM

Excellent support triple.

Prez · 03-14-2010, 08:37 PM

Quote:

Originally Posted by Jhester

Excellent support triple.

i hate looking for stuff when i get a new part and all i wanna do is install and run with it already... haha so yea enjoy it. funny when old poeple flag you down..." sir your car is still on..."

mjr321 · 03-14-2010, 11:57 PM

So did you wire it up without the plug and play harness?

mjr321 · 03-14-2010, 11:59 PM

And that seems to ne the pinout for a stock ka24de s13 ecu my car is an s13 but has a Silvia s14 sr20det ecu labeled "wc".. I need the wires for that

Prez · 03-15-2010, 09:54 AM

this one is off innovate motorsports...
1993 - 1996 Nissan Silvia S14 SR20DET (Non European) ECU Diagram

Still #53 is VSS
what year is your motor... Vss is prob the same.... if not go down by manifold close to firewall there should a be a two wire connector. one of those wires in that connector is the signal for the VSS. i have a toggle in my center console so if i ever so happen to go past 100 mph and still wanna go i just flip the switch and kill the signal.(thats a S13 w/ S13 blacktop)

Quote:

Originally Posted by mjr321

And that seems to ne the pinout for a stock ka24de s13 ecu my car is an s13 but has a Silvia s14 sr20det ecu labeled "wc".. I need the wires for that

Thats a 1997-1998 S14 Sr20DET and vss is 101 my bad wrong diagram

Prez · 03-15-2010, 09:59 AM

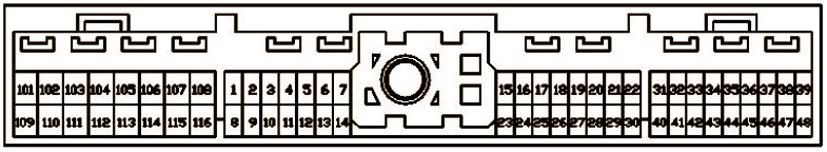

1997 - 1998 Nissan Silvia S14 SR20DET ECU Diagram

Printable (PDF) version

Pin #

Name

Signal Type

2

Tachometer Signal

RPM

16

Mass Air Flow Sensor

Analog

17

Mass Air Flow Sensor Ground

Ground

18

Engine Coolant Temperature Sensor

Analog

19

O2 Sensor Signal

Analog

20

Throttle Position Sensor

Analog

21

Sensor Ground

Ground

29

Sensor Ground

Ground

32

Vehicle Speed Sensor

Speed

101

Injector # 1

Speed

103

Injector # 3

Speed

110

Injector # 2

Speed

112

Injector # 4

Speed

116

Power Ground (Electronic Concentrated Control System)

Ground

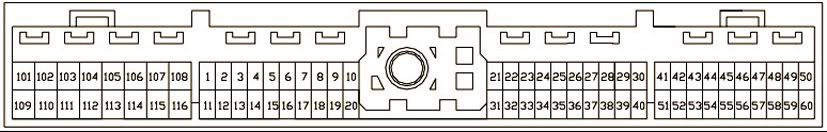

1993 - 1996 Nissan Silvia S14 SR20DET (Non European) ECU Diagram

Printable (_PDF) version

Pin #

Name

Signal Type

7

Tachometer Signal

RPM

26

Mass Air Flow Sensor Ground

Ground

27

Mass Air Flow Sensor

Analog

28

Engine Coolant Temperature Sensor

Analog

29

O2 Sensor Signal

Analog

30

Sensor Ground

Ground

38

Throttle Position Sensor

Analog

50

Power Ground (Engine Control Module)

Ground

53

Vehicle Speed Sensor

Speed

101

Injector # 1

Speed

103

Injector # 3

Speed

110

Injector # 2

Speed

112

Injector # 4

Speed

116

Power Ground (Engine Control Module)

Ground

Source:
http://www.innovatemotorsports.com/r...ecu_pinout.php
