Jordn · 03-20-2009, 02:29 PM

Only half done but moved my gauges from passenger side of dash to centre vents.Boost gauge to go in still.

Teambadrun · 03-22-2009, 03:20 AM

here's another...

KoukiMonsta · 04-06-2009, 10:31 PM

where can i get those mounts on the right? anyone know what they are called? thanks.

Johny5 · 05-02-2009, 08:38 AM

suede wrapped 1/4" lexan-ish type material with defi tach/temp/press., computer style led voltage readout and kill switch

VAs13 · 05-02-2009, 09:05 AM

nothing special, defi boost + link

*link is in the din between hvac and radio*

_________________________________________________

and my coupe before i sold it

smellslikecurry · 05-02-2009, 09:52 AM

lol

rbs14kouki · 07-12-2009, 10:31 PM

Quote:

Originally Posted by oni-kyan

here are a few I have made
s13

s14

sorry i dont know how to resize pics

Mael

anybody know if 60mm defi gauges can be fited like so ... i think is set-up is with 52mm gauges

Om1kron · 07-13-2009, 01:18 AM

Quote:

Originally Posted by KoukiMonsta

where can i get those mounts on the right? anyone know what they are called? thanks.

they look like greddy 52mm gauge holders.

Quail · 09-24-2009, 11:04 AM

Finally somewhat happy with my interior.

Black leather interior (still need to trim door cards).
Corbeau Sprint drivers seat.
Suede 330mm OMP wheel.
Kognition CF Radio Delete.
3x HKS Power gauges (Oil temp, Oil Pressure, Boost).
Blue LED Cluster lighting (soon to be replaced with white to match the HKS gauges).

(Before wheel and removal of old a-pillar boost gauge):

joecrack · 09-24-2009, 11:15 AM

Chernobyl · 09-24-2009, 11:22 AM

My super-custom gauge setup:

brainfood · 01-14-2010, 02:39 PM

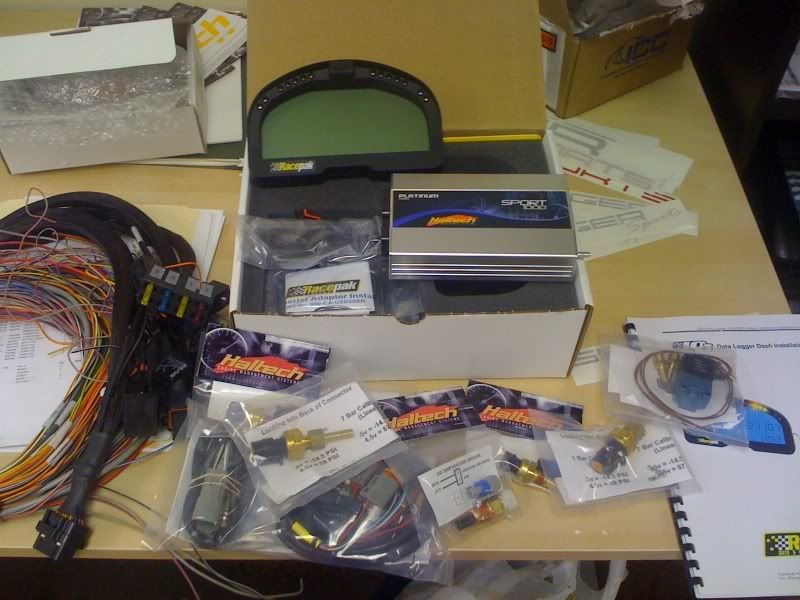

This showed up today, GPS Logger Dash with internal gsensor and lap tracking/mapping.

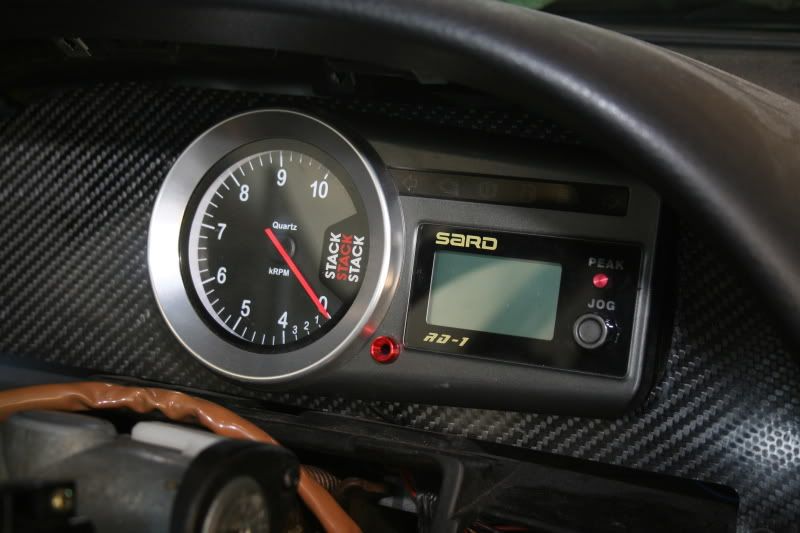

Going to replace my sard dash

abunai the drifter · 11-03-2011, 09:22 PM

@ Bryan any pics of your race pack in you car yet ???

driftwhat · 11-03-2011, 09:43 PM

Sorry its not an installed pic but this is what I did. Mounted the stock heater controls below the stereo and put the gauges in stock control location

Pinggg · 11-03-2011, 09:47 PM

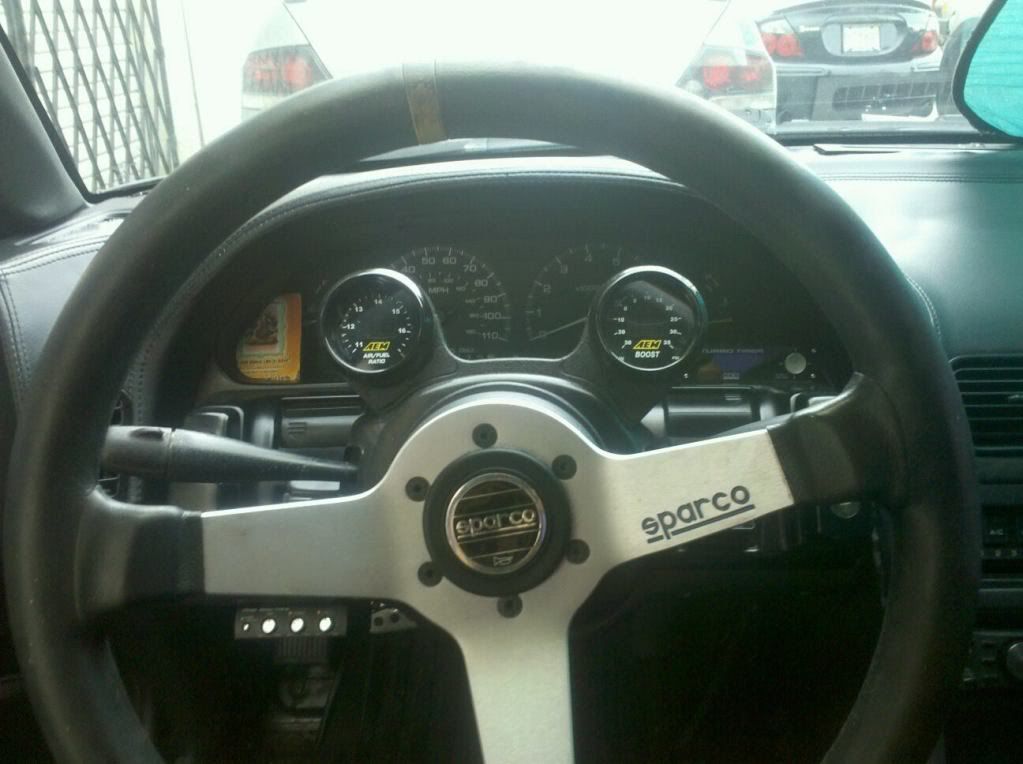

Simple-
sparco wheel
aem boost and wideband
hks turbo timer
greddy boost controller (lower right)
B&M Short shifter
Nismo shift knob

blksylv · 11-04-2011, 09:56 AM

Sileighty_85 · 11-04-2011, 05:19 PM

I like to keep it simple in my cars

sidies · 04-27-2012, 04:47 AM

Full Fibreglass panel replacement, no hacking up the oem one

Was thinking maybe a digital volt meter in the top left corner.

Jesse SR20 · 04-27-2012, 08:10 PM

Simple, easy.

redhatchy92 · 04-27-2012, 11:31 PM

i have the same exact setup lmao

Quote:

Originally Posted by Chernobyl

My super-custom gauge setup:

sinnerstar · 04-29-2012, 02:45 AM

Heres mine I made up also moved the aircon unit to under the center console arm rest thing

More details here
Doing work « DSD32

sidies · 05-02-2012, 06:24 AM

Changed my set up again

just clips straight in the A/C hole

ditchs14 · 05-02-2012, 12:37 PM

Quote:

Originally Posted by sidies

Changed my set up again

just clips straight in the A/C hole

how much??

landins13 · 05-02-2012, 12:59 PM

ive had a couple different set ups but i eliminated all the bs gauges i didnt need and actually got all of my factory ones working properly.

As it sits now, nothing fancy

Wire up the oem cluster to read accurately with my 1jz

previously

Some time ago

WAAAAAY Back in the day

2slow2go · 05-02-2012, 01:37 PM

Quote:

Originally Posted by sidies

Full Fibreglass panel replacement, no hacking up the oem one

Was thinking maybe a digital volt meter in the top left corner.

LOL funny how you kept the cig lighter haha

primernovaben · 05-02-2012, 01:38 PM

sheet steel with fuel level, oil psi and water temp. and EDDIE

JKim0901 · 05-02-2012, 02:49 PM

sidies · 05-02-2012, 05:57 PM

Quote:

Originally Posted by 2slow2go

LOL funny how you kept the cig lighter haha

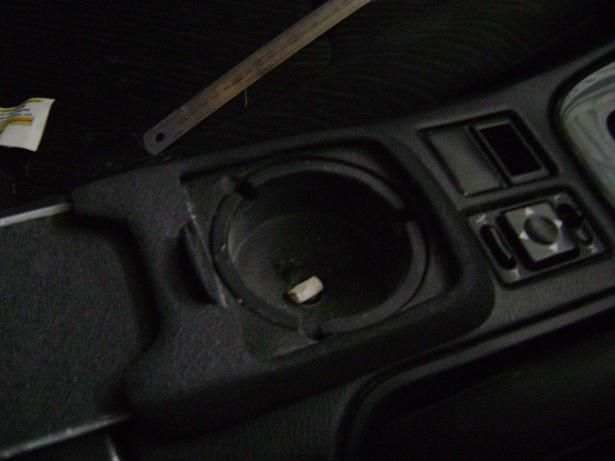

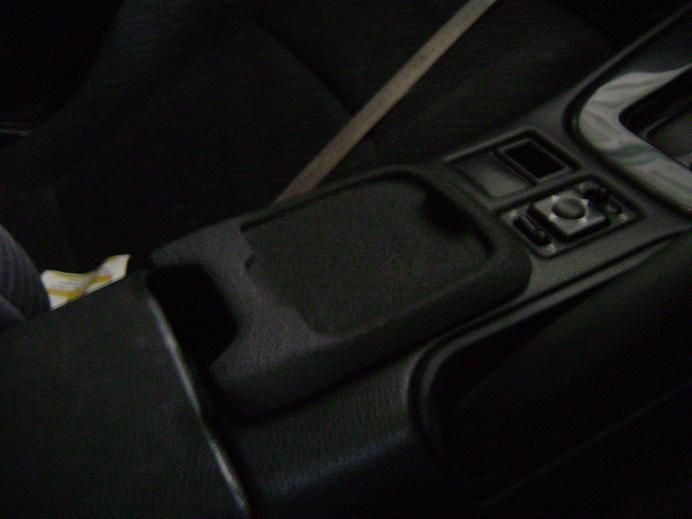

Can you tell I'm a smoker lol, really for GPS Phone charger etc.

I'm not talkin crap about being a smoker check this out

Don't really miss things till they are gone HA HA

Think it's going to be my new cup holder in my new set up

sidies · 05-02-2012, 06:10 PM

Quote:

Originally Posted by primernovaben

sheet steel with fuel level, oil psi and water temp. and EDDIE

Nice work , You should chuck a couple of red leds in or behind his eyes for a shift light, that would be crack up

sidies · 08-24-2012, 09:28 AM

Old single gauge set up

with cover on

New clip in for A/C hole
and painted gauge rim
