Picture Request: Interior Guage Setups

[driftenthusiast]

Originally Posted by SiI40sx

yea gauges are cool but that chick looks pretty hot, more pics!!

Not a chance, but thanks for the comment on the guages. How come no one else runs the wires through the dash?

[Quigs]

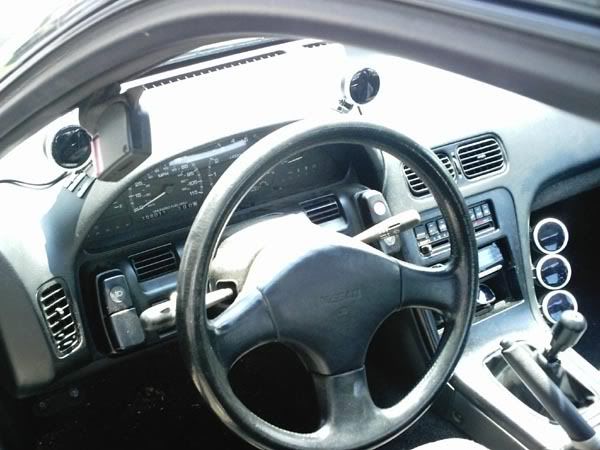

Got everything mounted...doesn't look the best, but is functional for me. SR swap hopefully within a month or so, so I will actually be able to use them

[prang11]

Quigs, I was thinking of mounting my gauges by the shifter like that as well. Do you like it or is it in the way? Does it make bringing passangers a pain?

[Quigs]

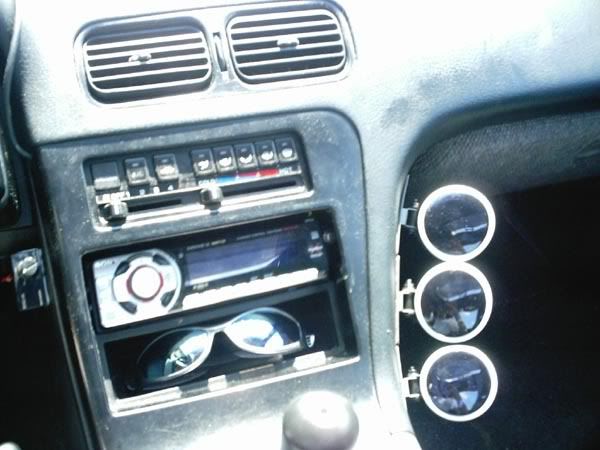

Yes, I do like it. The gauges mounted up top above the steering wheel (Boost and Oil Pressure) I felt were more important to keep my eye on. But the other three along the shifter/passenger area (Oil Temp, Water Temp, Air/Fuel) I didn't want all up in my face on the dash (although functional) and didn't want to fill my dash with holes to run the wires.

As far as passengers go, my roommate complains slightly that they get in the way, but I sat in the seat myself and personally have no problem with how they are mounted. Yes, it does take away from letting the passenger lean their knee on that area, but there is still plenty of space for someone to fit comfortably. As far as I'm concerned, having the gauges where I want them and where I can comfortably see them is more important than how comfortable my passenger is haha.

So yes, I do like how it is set up, since all I have to do is glance down for a second to check them and they aren't all bright in my face. As long as you keep the passenger seat fairly far back, I'm sure you'll have no problem with that as well. Hope this helped.

P.S. I'll post better pictures once it stop raining and I get a chance to get outside. I also need to re-ground the air/fuel gauge haha.

[jrmiller84]

Installed my new tach on the right there today. Can't seem to find the right tach signal wire though so it's just sitting there right now. Would have put it in the ATI steering column pod but it was 60mm instead of 52mm like I thought.

[Koopa Troopa]

[420sx]

[chmercer]

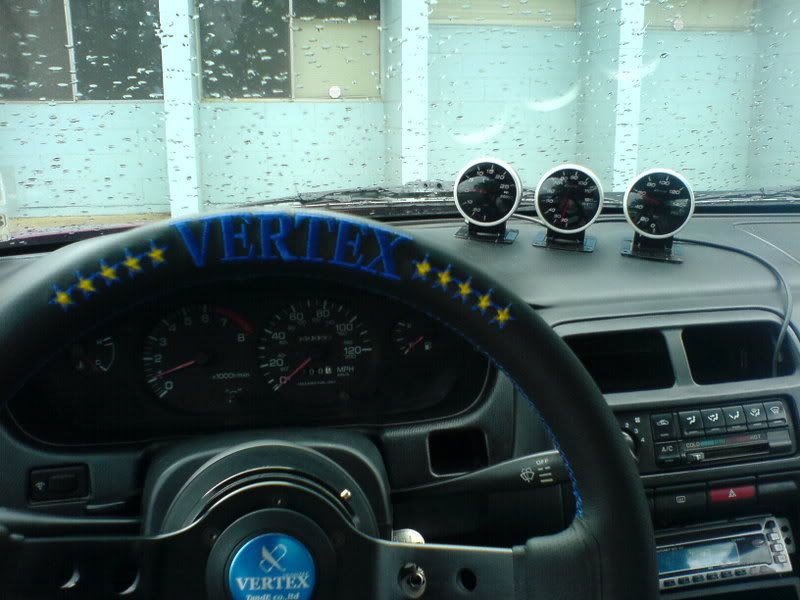

that steering wheel is pretty sick with the stars man. dig it

[CKAMC]

Wow I that vertex wheel, thanks man for posting your setup!

[Hooorahh!]

i do agree that u should at least have a water temp gauge and oil pressure .. those are the most important ones .. i just had my laptop with me and it would show me all of them AEM EMS knock,water temp.. and so on but here is my lil ugly gauges ...



not the best pix but okay




and a friends

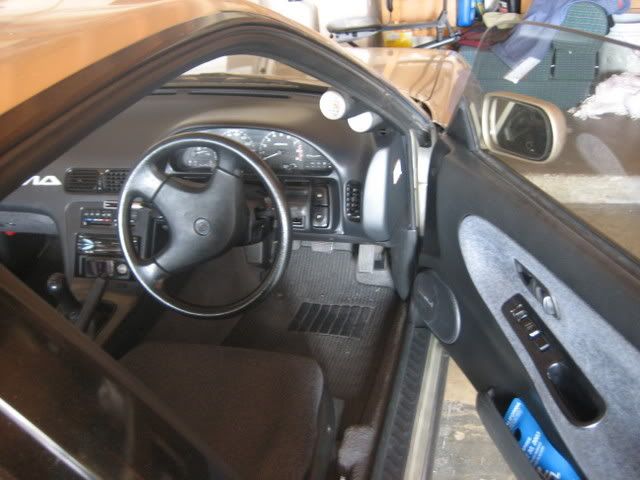

<a href="http://photobucket.com" target="_blank"><img src="http://i21.photobucket.com/albums/b274/Studgus/two%20thousand%20five%20to%20two%20thousand%20seve n%20june/IMG_8309.jpg" border="0" alt="Photo Sharing and Video Hosting at Photobucket"></a>




and can someone please tell me what part number it is for a s13 ? and what color that guy has on here

http://www.superbrightleds.com/

[axiomatik]

Originally Posted by s13sr20dettttt

and can someone please tell me what part number it is for a s13 ? and what color that guy has on here

http://www.superbrightleds.com/

not exactly sure what it is you're asking. but if you want to know what LED bulbs to order for your instrument cluster, take a look here, starting with post #47.

[Rkesh88]

Originally Posted by axiomatik

not exactly sure what it is you're asking. but if you want to know what LED bulbs to order for your instrument cluster, take a look here, starting with post #47.

he wanted to know the type of bulb. at the superbrightleds website the opetions are 1 led and wide/narrow as the replacement bulbs. so he wanted to know whihc combo was used. i pmed the guy thta did he but he hasnt been on zilvia in a couple of months. so any help here?
WIll the 4led/6led fit or no?

[axiomatik]

Originally Posted by Rkesh88

he wanted to know the type of bulb. at the superbrightleds website the opetions are 1 led and wide/narrow as the replacement bulbs. so he wanted to know whihc combo was used. i pmed the guy thta did he but he hasnt been on zilvia in a couple of months. so any help here?
WIll the 4led/6led fit or no?

I'd think that the 4/6led ones would be too big, but I'm not certain. I've got a spare cluster I could check out when I get home.

http://www.zilvia.net/f/showpost.php...1&postcount=58

This post shows which ones I used. I get good, even illumination out of them, but they could be a bit brighter. I'm thinking about ordering some white ones, as the data sheet shows them as being brighter than the blue ones. I've also seen some that don't have any lens on them at all (not even the bullet-shaped one on most LEDs), just a bare diode on a bulb base. Don't remember where they are from, but I saw them on hidplanet.

[DRFT180]

Pretty simple
I plan on adding an oil temp and pressure

[trybal]

Originally Posted by DRFT180

Pretty simple
I plan on adding an oil temp and pressure

wtf is wrong with this picture.. your legs look like they are through the steering wheel..,

[DRFT180]

Hmmm it does look like that, weird angle I guess or I could be a midget. You may never know

[koukikat180sx]

[khilgers]

[oni-kyan]

here are a few I have made
s13



s14




sorry i dont know how to resize pics

Mael

[rbs14kouki]

Originally Posted by oni-kyan

here are a few I have made
s13



s14




sorry i dont know how to resize pics

Mael

anybody know if 60mm defi gauges can be fited like so ... i think is set-up is with 52mm gauges

[Quigs]

^^ WOW. And I thought that I had a lot of gauges by having 5. Dang. Definitely clean though. Doesn't look to be too bad of a set up.

[FusionR240sx]

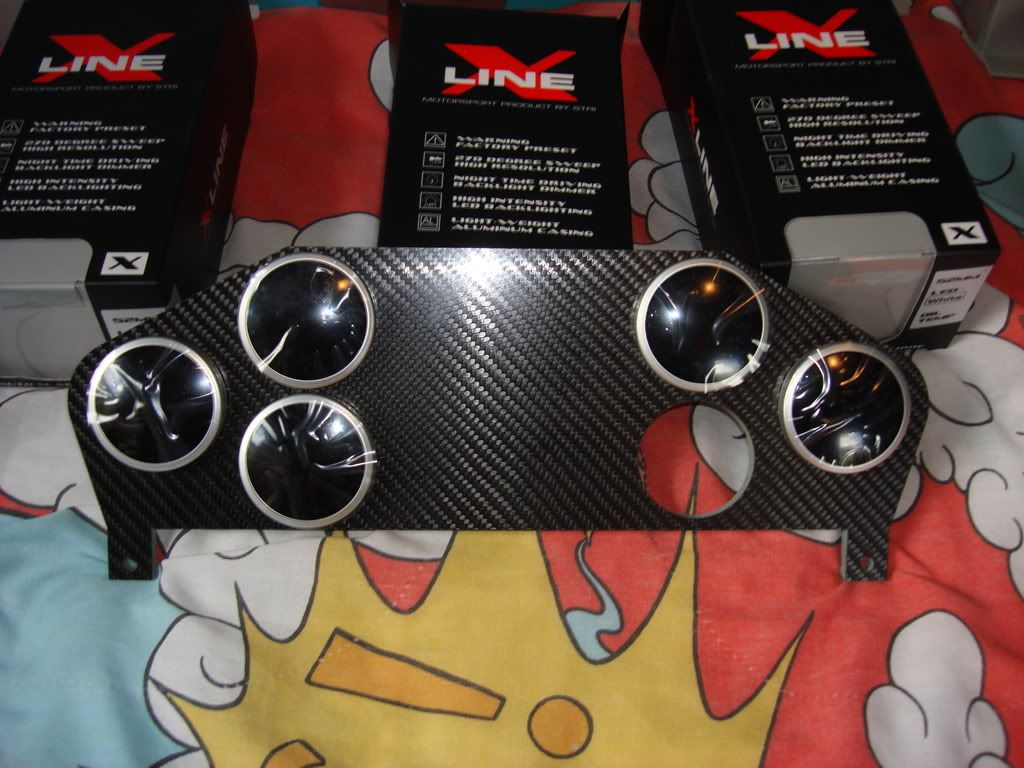

slowly but surely...

[driftsilvias13]

Originally Posted by FusionR240sx

slowly but surely...

too sick!!! how much was the cf piece from kognition design? their site is being worked on so i cant find out..

[Z_Spool]

Screw the CF piece, How much were the pimp sheets? Those are straight baller status.

Originally Posted by VAs13

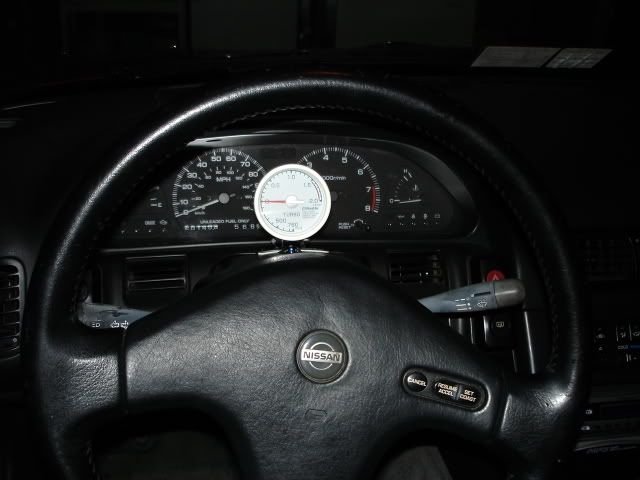

I'm all for simplicity, but I'm not sure of this. Does it impede the view of any of your other gauges? I like the idea of it being in the middle of your gauges. Keeps you from having to look all over the car. Just wish there was a way to make it look like it belonged there rather than just slapped on the top of the collumn like that.

[FusionR240sx]

Originally Posted by driftsilvias13

too sick!!! how much was the cf piece from kognition design? their site is being worked on so i cant find out..

$80 shipped

Originally Posted by Z_Spool

Screw the CF piece, How much were the pimp sheets? Those are straight baller status.

haha.. that's Aladdin mayne.

[VAs13]

Originally Posted by Z_Spool

I'm all for simplicity, but I'm not sure of this. Does it impede the view of any of your other gauges? I like the idea of it being in the middle of your gauges. Keeps you from having to look all over the car. Just wish there was a way to make it look like it belonged there rather than just slapped on the top of the collumn like that.

i can see the speedo from 0-85 or so and my tach from 2k+(but i also have an safc to read from)

[Oubre]

Really like the Setup Fusion. What type of gauges are they (ie temp, boost) / what else do you plan to add

[FusionR240sx]

Originally Posted by Oubre

Really like the Setup Fusion. What type of gauges are they (ie temp, boost) / what else do you plan to add

thanks,

they are
fuel pressure
water temp
oil temp
oil pressure
boost
waiting for EGT
then in the middle gona make a 60mm hole for the tach

all STRI X-line gauges
Kognition Design CF gauge cluster panel.

[Angelus]

Shot at 2007-07-19

[sr20dett]

Originally Posted by Angelus

Shot at 2007-07-19

those are 52mm or 60mm??
