Otto347 · 11-14-2009, 07:34 PM

I plan on it, just going in 10 different directions and the humidity sucks ass down here lol

go4speeed · 11-14-2009, 08:05 PM

my bay

SuperiorS14 · 11-15-2009, 09:02 PM

nice!!! how bout some spec on it? is it a TT 25?

Quote:

Originally Posted by go4speeed

my bay

b-s14 · 11-14-2009, 09:41 PM

^^ that is an interesting setup for the rb26.

go4speeed · 11-14-2009, 09:46 PM

Look closer it's a 25

OBEEWON · 11-17-2009, 02:35 PM

Quote:

Originally Posted by go4speeed

Look closer it's a 25

More info and pictures?

old bay.

Skyn · 11-15-2009, 01:10 AM

New motor ka24de-?
polished intake
freshly painted high tepm bronze metal finish valve cover and oil cap

jr_ss · 11-15-2009, 05:49 PM

My new setup...

xdumbxguyx · 11-15-2009, 06:08 PM

fresh paint and new brake lines

Ceepo · 11-15-2009, 07:02 PM

Tom25666 · 11-15-2009, 09:45 PM

i'm pretty sure the two mushroom filters are for TT

go4speeed · 11-16-2009, 02:48 PM

Yup ist a rb25dett using GTR 34 BB's

93superHICAS · 11-17-2009, 03:54 PM

old setup

new

oh wait... something goes in there.

Slo_240sx · 11-17-2009, 04:38 PM

My old setup in 05'...

My new setup since 06'

godrifttoday · 11-17-2009, 09:59 PM

Flicktitty · 11-18-2009, 10:13 AM

how it sits as of now.

alot to change over winter.

Polish valve covers
Polish Intake manifold
61MM single turbo
Tial Wastegate
a few other chrome and pink acc.

whatcha think?

McCoy · 11-19-2009, 10:26 AM

New setup. S13 SR20DET block, I had the S13 SR20DE prior. Switched from the T28 and stock manifold to a JGS SR log manifold with a T3/T04E 50 trim turbo. Also switched from the 50lb MSD injectors to Nismo 740 injectors and the JGS400 WG and BOV.

j20accord00 · 11-19-2009, 11:30 AM

^^^ nice set up. how does it spool with that new jgs manifold?

old sr

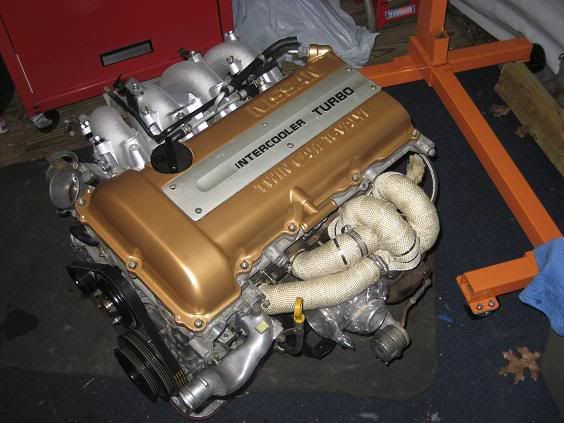

old engine bay

sold about 3 years ago. got another 240 itch. so I bought a 92 fastback. will get some pics of it soon. going ka-t this time

McCoy · 11-19-2009, 11:45 AM

Quote:

Originally Posted by j20accord00

^^^ nice set up. how does it spool with that new jgs manifold?

Just a tad slower than the S14 T28... so far I'm liking the 4-bolt .63 A/R ext housing. I've yet to turn up the boost until I get the LC-1 wideband installed.

Impact Black · 11-19-2009, 12:29 PM

Well this is how my engine bay sits right now. About to change up the whole car after winter break.

dread · 11-20-2009, 08:41 AM

Mine (UK S14 btw) Factory SR

IIIXziuR · 11-20-2009, 01:21 PM

^Wire Harness tuck I take it?
Looks very neat.

Gorilla Unit 33 · 11-21-2009, 12:49 PM

Just finished my tuck, yes everything is plugged up except the maf and p/s hose...

Next, ss brake lines and clutch line tuck...

CrazyTrance · 11-22-2009, 05:27 PM

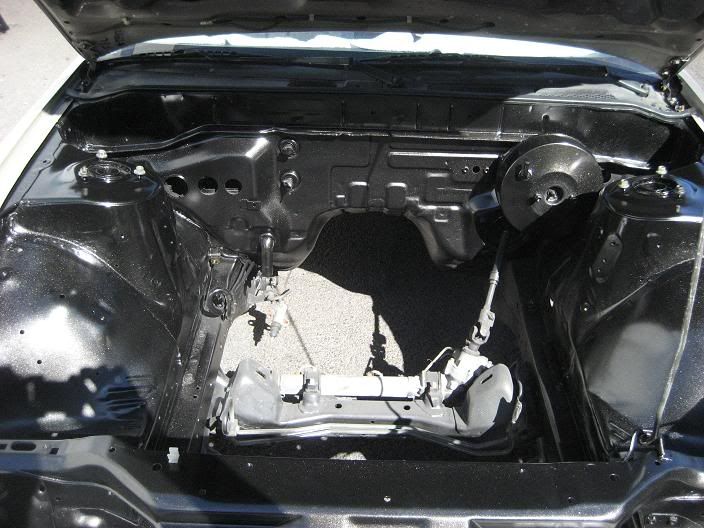

Just painted the bay BMW Alpine White III with gold pearl in the clear while i had the engine out. Working on the wire tuck and thinking about doing a brake/clutch line tuck while i'm at it.. not sure yet.

3AM · 11-22-2009, 07:53 PM

my s13

ghostchild316 · 11-22-2009, 11:16 PM

irax · 11-23-2009, 05:26 AM

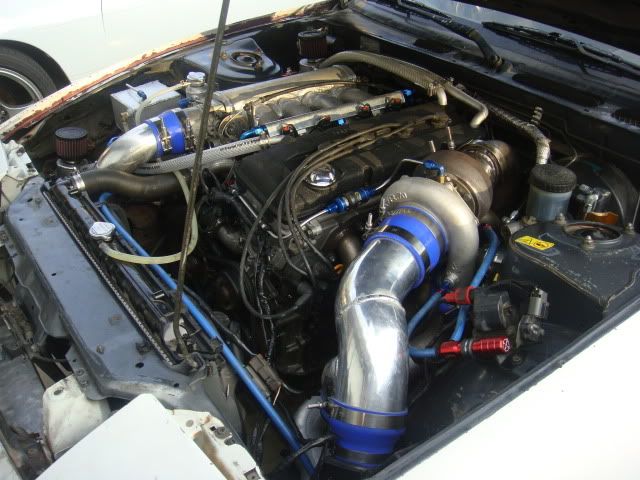

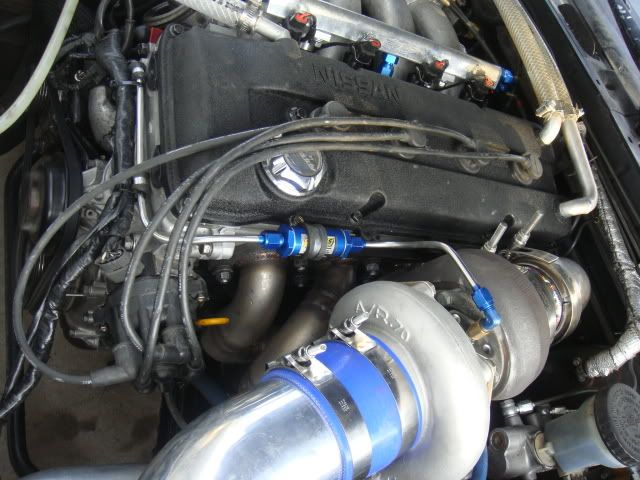

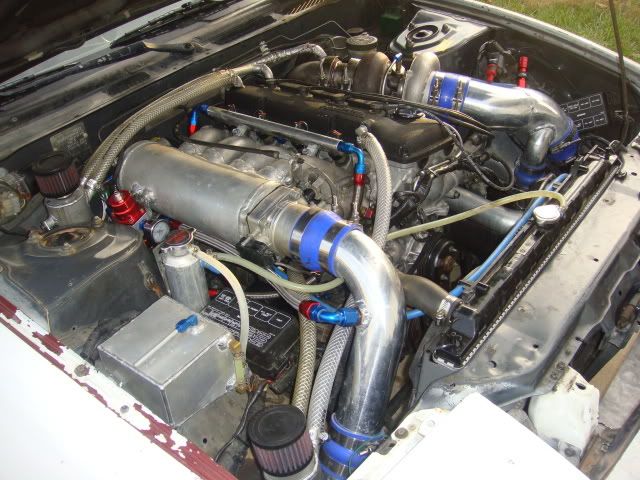

^^^^ Holy crank case ventilation batman!!!!! what are you boostin? 30psi to have that much blowby with nothing connected to a vacuum source? spent all that money on turbo and AN fittings to not upgrade the radiator? S14 rad in an s13 does not count.

though.... i'm really crackin shit because i'm super jealous! I wish i went KA-T my car would probably be running by now.

ghostchild316 · 11-23-2009, 09:34 AM

The radiator is more than plenty. The E85 really cooled everything down alot. It was free and brand new so why not? lol

As for the ventilation, it works well. The catch cans are baffled.

Haven't hit 30psi yet, but at 22psi the fuel system was nearly maxed out.

The turbo is a T3/T67 HO. Yea, I don't do any drifting

irax · 11-23-2009, 04:57 PM

Quote:

Originally Posted by ghostchild316

The radiator is more than plenty. The E85 really cooled everything down alot. It was free and brand new so why not? lol

As for the ventilation, it works well. The catch cans are baffled.

Haven't hit 30psi yet, but at 22psi the fuel system was nearly maxed out.

The turbo is a T3/T67 HO. Yea, I don't do any drifting

ahhhhh didn't know that you were running E85 just by looking at your engine bay. that makes everything different

TOMKAIRA93 · 11-23-2009, 11:24 AM

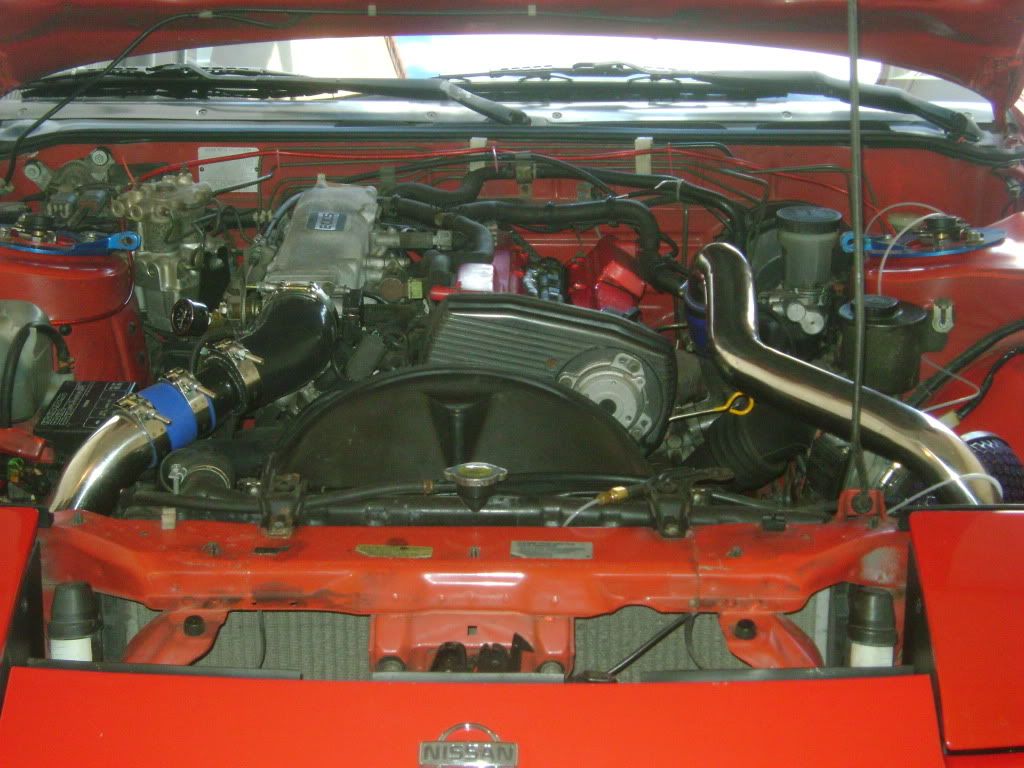

My CA
