waxball88 · 03-16-2013, 12:18 PM

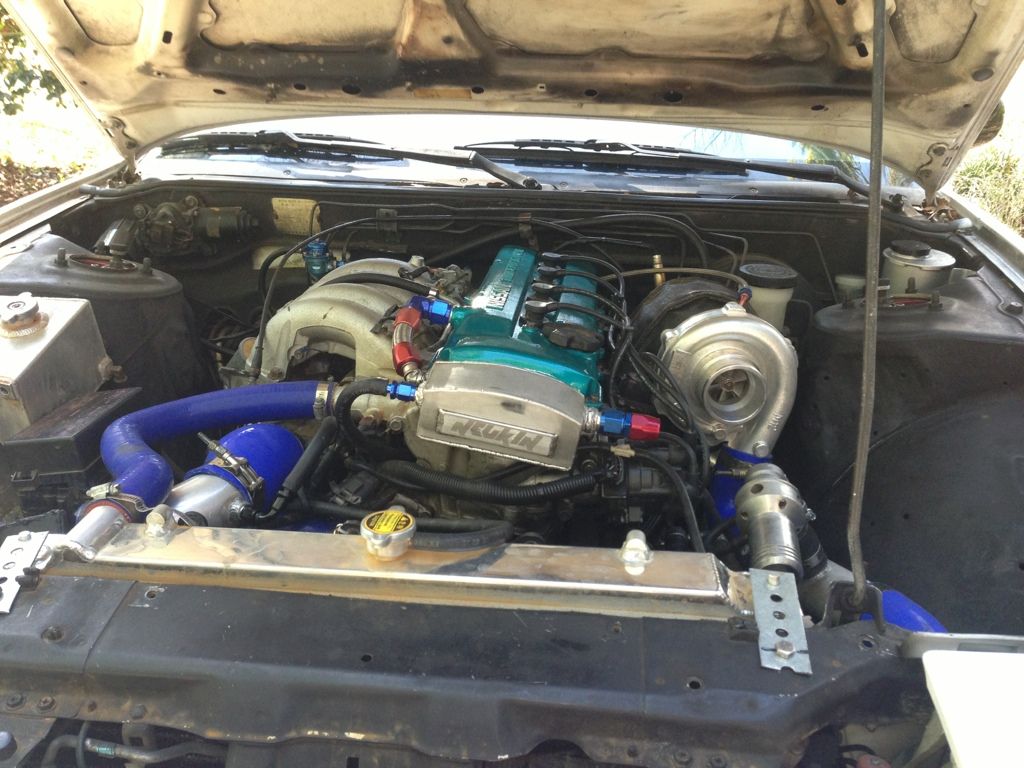

Ran with no filter, blow through is fun, need to repaint my bay

arlok · 03-16-2013, 05:57 PM

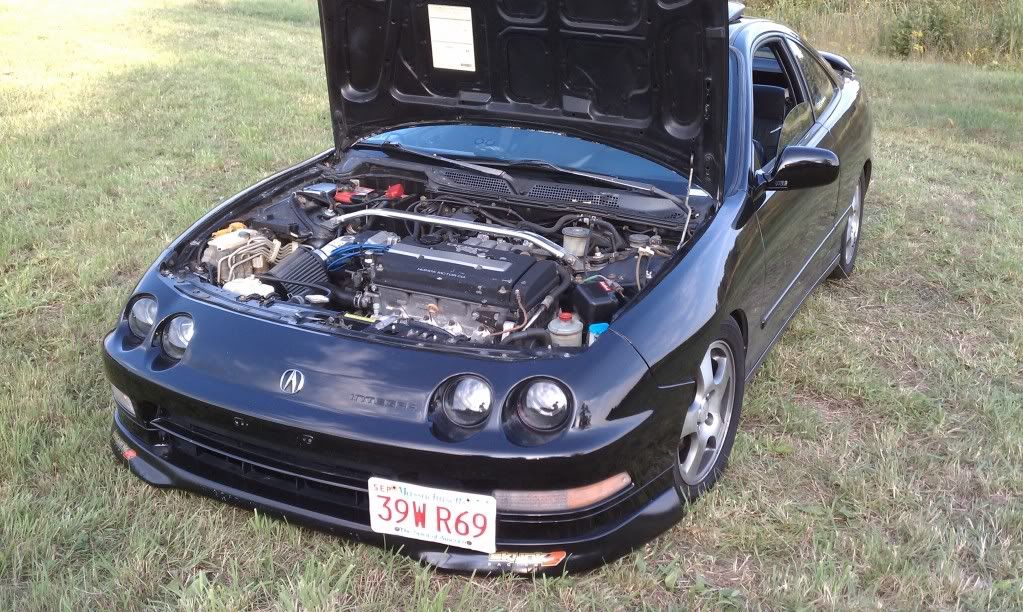

My old 95 Integra GSR

My S14

Magical Trevor · 03-16-2013, 10:37 PM

Quote:

Originally Posted by conrad_s13.5

blackonblackonblack!

<3

Quote:

Originally Posted by BiG MiKE86

That's a good looking bay

Thanks y'all. Lots of time, effort and money in the bay.

Memberofthe600hpkaclub · 03-17-2013, 04:11 AM

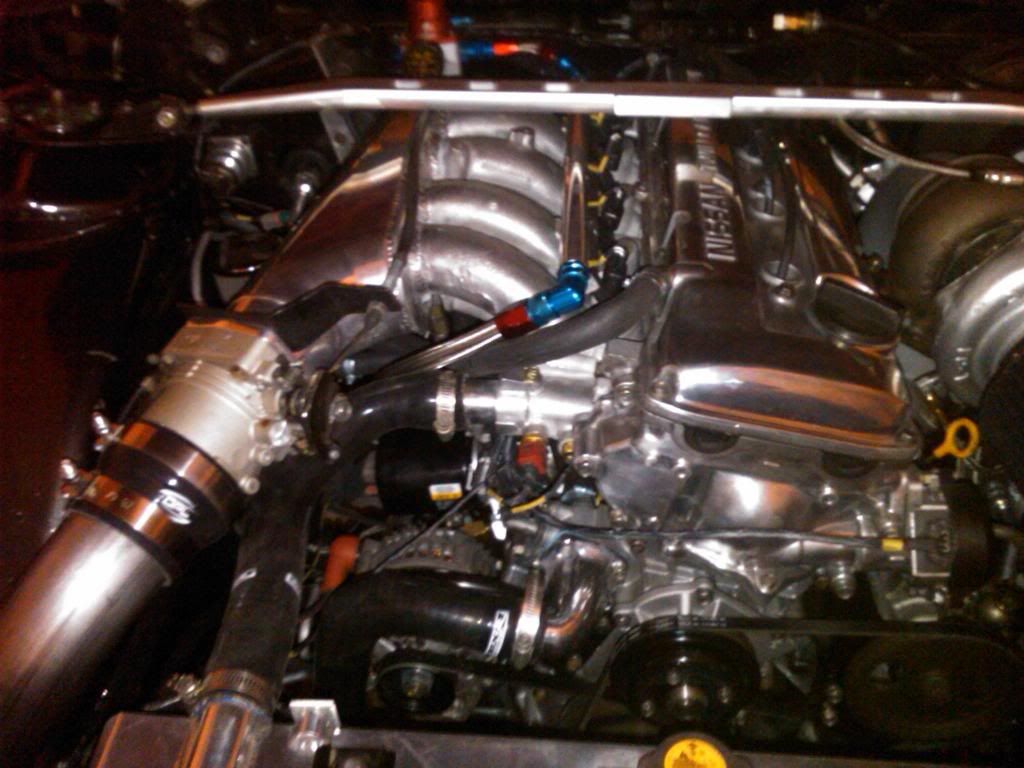

Fuel lines done almost ready for enjoyment

STEEZxIT · 03-17-2013, 05:05 PM

degreased the hell out of the bay, flat white base, metallic charcoal flakes, then hit it with clear.

ready for the 2jz.

conrad_s13.5 · 03-18-2013, 07:58 PM

idahotuner · 03-18-2013, 08:18 PM

Seraphim38 · 03-19-2013, 09:37 AM

WHAT?? Is the Idahotuner mobile going to live? I was watching your build long before I did my new all out build.

di-devol · 03-19-2013, 09:49 AM

Quote:

Originally Posted by Seraphim38

WHAT?? Is the Idahotuner mobile going to live? I was watching your build long before I did my new all out build.

I know right? Building forever haha

coupesallday! · 03-19-2013, 04:33 PM

My bros s12

SaNTi · 03-19-2013, 04:38 PM

Quote:

Originally Posted by Magical Trevor

Slowly but surely

This looks great. Nice and simple. Any more pics?

idahotuner · 03-19-2013, 04:54 PM

Quote:

Originally Posted by Seraphim38

WHAT?? Is the Idahotuner mobile going to live? I was watching your build long before I did my new all out build.

Quote:

Originally Posted by di-devol

I know right? Building forever haha

haha i know right huh, its hard when i travel all summer and get home to 3 feet of snow, but it has been running, not up to par, but running, i have a brand new wiring specialties harness coming in today

PeaceOnesxWai · 03-20-2013, 05:37 PM

Quote:

Originally Posted by STEEZxIT

degreased the hell out of the bay, flat white base, metallic charcoal flakes, then hit it with clear.

ready for the 2jz.

mmmmmm OREOS

13esim · 03-21-2013, 09:05 PM

Ill throw mine in here, nothing special

Asuka · 03-26-2013, 11:08 PM

I'm fully of fanboy bullshit.

s14fbs · 03-27-2013, 10:30 PM

does anybody know of fmic kit for s14sr that doesnt have the big port for the stock bov

or am i better off modifying a s13 kit to fit my s14sr in my s13

shift_down · 03-27-2013, 10:38 PM

Not sure if troll......or lost

Irresistible · 03-27-2013, 10:47 PM

Quote:

Originally Posted by s14fbs

does anybody know of fmic kit for s14sr that doesnt have the big port for the stock bov

or am i better off modifying a s13 kit to fit my s14sr in my s13

Most FMIC piping kits shouldn't have a stock BOV port... Find a CXRacing one on eBay. There's ones with a GReddy flange, HKS flange, or no flange at all. And I'm pretty sure you'll need an S14SR kit because of how the throttle body is positioned.

I could be wrong, so anyone feel free to correct me.

s14fbs · 03-27-2013, 11:02 PM

Quote:

Originally Posted by Irresistible

Most FMIC piping kits shouldn't have a stock BOV port... Find a CXRacing one on eBay. There's ones with a GReddy flange, HKS flange, or no flange at all. And I'm pretty sure you'll need an S14SR kit because of how the throttle body is positioned.

I could be wrong, so anyone feel free to correct me.

yeah i need to run a s14sr kit but all the s14 kits isis cx godspeed blitz greddy have that stupid giant port for stock bov tube or w/e the hell it is

Irresistible · 03-27-2013, 11:36 PM

Quote:

Originally Posted by s14fbs

yeah i need to run a s14sr kit but all the s14 kits isis cx godspeed blitz greddy have that stupid giant port for stock bov tube or w/e the hell it is

Are you talking about the port right by the throttle body?

s14fbs · 03-27-2013, 11:48 PM

Quote:

Originally Posted by Irresistible

Are you talking about the port right by the throttle body?

not the icav port the secondary one on the right side of the cold pipe up by the tb

that thing on the cold pipe

Irresistible · 03-28-2013, 12:01 AM

OH, I see what you're saying now. Forgot about that port... But I guess plugging it up somehow would work, although it wouldn't look too good.

But nevermind, I'm of no help here. I couldn't find one either from my quick search just now.

BoostinIX · 03-28-2013, 04:44 AM

My Blitz kit doesn't have that. It's typically seen on the Greddy's (And Greddy copies)

sil14zenki · 03-28-2013, 07:40 PM

tubs finally done. test fit before paint

s14fbs · 03-28-2013, 07:56 PM

How do you like the era-1 throttle body I plan on picking one up myself

sil14zenki · 03-28-2013, 08:18 PM

really worth it. amazing quality and the spacer is perfect for port matching the manifold.

Pinggg · 03-28-2013, 08:19 PM

delete.........

Pinggg · 03-28-2013, 08:20 PM

ryandriftingfat · 04-01-2013, 02:35 PM

Better shot, when it was finished for real this time. Didn't have a wiring harness before.

Paint your engine bays.

Super_OK_S13 · 04-01-2013, 03:34 PM

Hi guys! I was wondering what kind of body filler some of you were using around the shock towers, by the frame to smooth sections out and around the heat of the header/manifold. I understand regular body filler might crack if the shock tower flexes or the area gets too hot.

I picked up some fiberglass reinforced body filler and also the paint/body shop suggested a 3m product that is flexible and for plastic bumpers but could also bond to metal.

I had to do this to both shock towers and fix a spot near the driver side firewall too.

its all ground down so i'm pretty much ready for filler or whatever works to smooth it out.

anybody have suggestions? thank you in advance!!
