zombiewolf513 · 05-02-2013, 03:18 PM

Quote:

Originally Posted by greenwood

so nice then you run that surge tank cmon bro

I usually run without one, that's just so if something happens it doesn't puke on the dyno

greenwood · 05-02-2013, 03:58 PM

I dont understand why you wouldn't use one. good luck with the dyno I see that it is at national speed

zombiewolf513 · 05-02-2013, 04:37 PM

Thanks, I just got an update from national speed. The engine is well built, and at WOT with (what im told) the extremely conservative timing, RPM limit, and AFRs for the break-in tune it still pulled 350whp/300lbft at 17 lbs. They'll post a video on facebook soon, so I'll repost it here when I get it.

zombiewolf513 · 05-02-2013, 08:07 PM

Michael's SR20DET Powered 240SX Pulling | Facebook

Hoffman5982 · 05-02-2013, 10:25 PM

Quote:

Originally Posted by zombiewolf513

Michael's SR20DET Powered 240SX Pulling | Facebook

Dude,you have a build thread for this. Stop posting every single picture and video you take. Your shit looks great, but we don't need to see it 4 times in 1 day.

EsChassisLove · 05-02-2013, 09:22 PM

Just finished the new FMIC kit and decided to go topmount GRX3076r .64. Going to have the same vibrant clamps and custom piping.

Eazy_tom · 05-05-2013, 07:11 PM

Quote:

Originally Posted by EsChassisLove

Just finished the new FMIC kit and decided to go topmount GRX3076r .64. Going to have the same vibrant clamps and custom piping.

Looks good! Im friends with Jose a kaizen, I saw your being worked on.

EsChassisLove · 05-05-2013, 07:36 PM

Quote:

Originally Posted by Eazy_tom

Looks good! Im friends with Jose a kaizen, I saw your being worked on.

Thanks! Jose is a great dude. He's really tedious with his work. Does everything right the first time and didn't let me cut a single corner. Going to have years of 500+hp fun with this engine thanks to him.

Aurimas · 05-06-2013, 01:36 AM

My daily. Yeah, dirty...

nevertheless · 05-02-2013, 10:58 PM

Didn't know where else to post this, but here is the before and final flow numbers of my Sr20. Concentrated mostly on the exhaust side since it is a turbo build. Nice gains with stock valve sizes. Smithberg Racing Ftw!

PoorMans180SX · 05-05-2013, 06:10 PM

Wire tuck time.

CaptainVlad · 05-05-2013, 06:19 PM

Ended up going with a VG35? I remember you posting over on NRR and on here about doing a 4G63 swap, what ever happened to that?

Also, my friend talked me into doing an all motor VG35 build for the other car. Mind if I message you to ask you some quick questions?

PoorMans180SX · 05-05-2013, 06:53 PM

Quote:

Originally Posted by CaptainVlad

Ended up going with a VG35? I remember you posting over on NRR and on here about doing a 4G63 swap, what ever happened to that?

Also, my friend talked me into doing an all motor VG35 build for the other car. Mind if I message you to ask you some quick questions?

VQ35 but yeah, check out my build thread and you'll see why. Message away!

BlackZenkiS14 · 05-05-2013, 06:26 PM

Need to clean it up and get a better picture...but whatever, you get the idea.

Perfect Balance · 05-06-2013, 09:00 PM

Currently being assembled

Polishs13sr · 05-07-2013, 11:31 PM

Almost done with my sr swap. Just a few more wires to tuck and things I needed to clean up. Homemade, unprofessionally painted, flame away!

Spark · 05-09-2013, 02:38 PM

my old setup

Mikester · 05-13-2013, 10:01 AM

Just about ready... couple things left to do:

jr_ss · 05-13-2013, 11:44 AM

Need better lighting Mike!

Pinggg · 05-19-2013, 09:29 PM

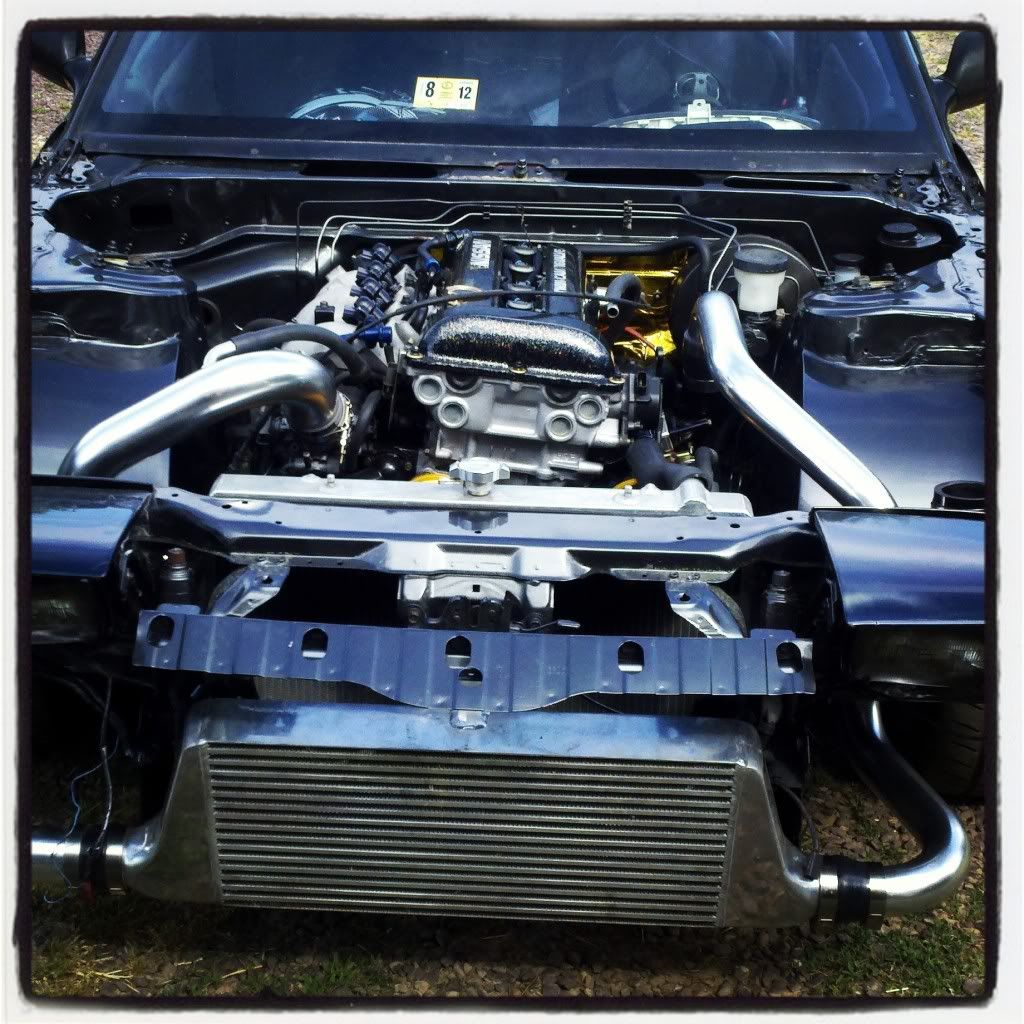

rotation3x · 06-03-2013, 04:23 PM

[IMG]

[/IMG]

headup240 · 05-21-2013, 04:52 PM

KoukiMonsta · 05-22-2013, 03:57 PM

Pretty much done with the bay..more pics in my build thread. Few little things left to finish up..

image_15 by Koukimonsta, on Flickr

enginebaycomplete by Koukimonsta, on Flickr

90pearlz · 05-22-2013, 08:01 PM

What are you using for a coolant res^

KoukiMonsta · 05-23-2013, 07:51 AM

Quote:

Originally Posted by 90pearlz

What are you using for a coolant res^

I'm not sure what its from but it's just a rectangular coolant res. haven't found a good way to mount it yet. And I wanna do aluminum...

s14fbs · 05-23-2013, 11:20 AM

Quote:

Originally Posted by KoukiMonsta

I'm not sure what its from but it's just a rectangular coolant res. haven't found a good way to mount it yet. And I wanna do aluminum...

i ran one of these on the zenki they have diff colors and can be mounted about anywhere
http://www.summitracing.com/parts/csi-931b/overview/

Om1kron · 05-23-2013, 11:33 AM

boring, I know. Nothing major going to be happening in here. I like how boring it looks. Maybe get my spare intake manifold powder-coated wrinkle black.

BlackZenkiS14 · 05-29-2013, 05:58 PM

Mine

ILoveJDM · 05-29-2013, 06:10 PM

sr22det
WWW: Work VSKF’s x SR22DET

nickauger · 05-29-2013, 07:15 PM

Quote:

Originally Posted by ILoveJDM

sr22det
WWW: Work VSKF’s x SR22DET

You should change your intercooler hose clamp for more heavy duty one...!
