redsuns3838 · 05-12-2006, 05:46 PM

ok so i just got a HKS type S fmic for my S14 (S14 SR20det aswell) and went out and took my battery out and took the pipe going from FMIC to TB and just tried to figure out where in the battery tray i would want to drill a 3-3.5 inch wide hole...however due to the shape of the pipe you cant really get much of a good guess. from what i can tell it looks to be on the outer part of the battery tray, but i dont want to end up drilling the whole damn tray away haha. does anyone with a HKS type S on their S14 (with S14 sr aswel) think they could take a quick picture of the battery tray and where the fmic piping goes thru it? if so it would be greatly appreciated! thanks guys.

ae86driftn · 05-12-2006, 10:22 PM

isn't there intructions of where to drill from?

There should be three small holes that are all ready there. line up the holesaw so that it roughly cuts through the middle of each small hole.
use a 3 1/2 inch hole saw, then use some vacuum lines to wrap around the hole for a clean install.

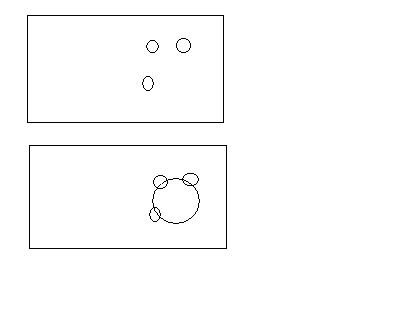

here I did this real quick....

redsuns3838 · 05-13-2006, 01:44 AM

thankyou! i bought it used so there were no instructions unfortunately. i didnt even know the instructions would tell you that. seems you have a S13 by the look sof your sig, so im going to try and get ahold of a S14 HKS install manual just to confirm about hole location.
thx much though.

ae86driftn · 05-13-2006, 07:52 AM

Yeah, I just install a greddy fmic on a S14, the location of the of the cold pipe throught the tray is the same for all the aftermarket fmic greddy,HKS,blitz....the location is all the same....

Slidin240Wayz · 05-14-2006, 10:14 AM

Check out www.hiprollc.com, they have an install guide. Props to them.

http://hiprollc.com/installations/S1...structions.pdf
