EnemyS15 · 11-20-2012, 08:31 AM

^ that right there is pure sex.

JDM_Tuner · 11-20-2012, 10:06 AM

Quote:

Originally Posted by mishimoto

Did you bake it as well? Or just spray?

In that picture it's not baked, I haven't decided yet if I want to bake it, because I mean it's gonna get naturally baked in the engine, so I guess it's not really nessecary.

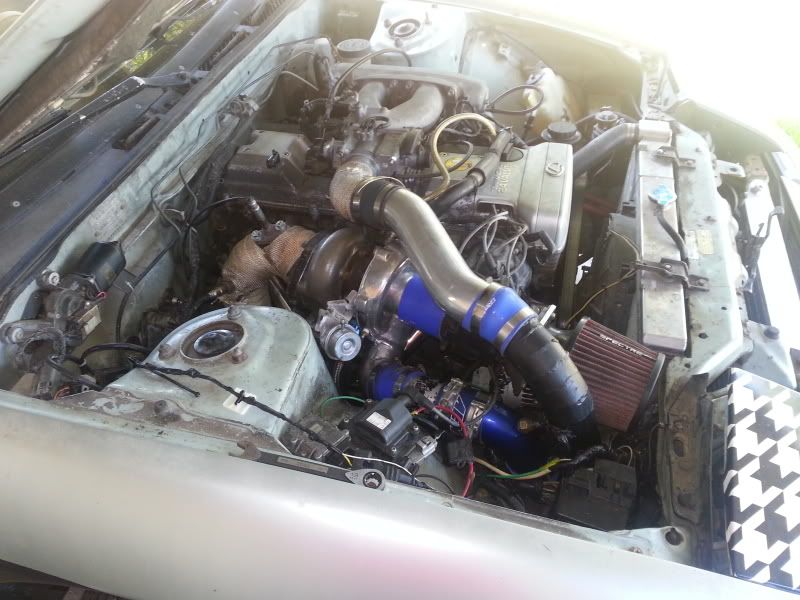

shift_down · 11-20-2012, 10:45 AM

.

Flicktitty · 11-20-2012, 10:56 AM

I started re doing some of the wiring on the car, looking forward to seeing how it turns out in the end (not finished)

Before:

After:

sr20detconv · 11-22-2012, 05:08 PM

My car but took the pic from modified mag website

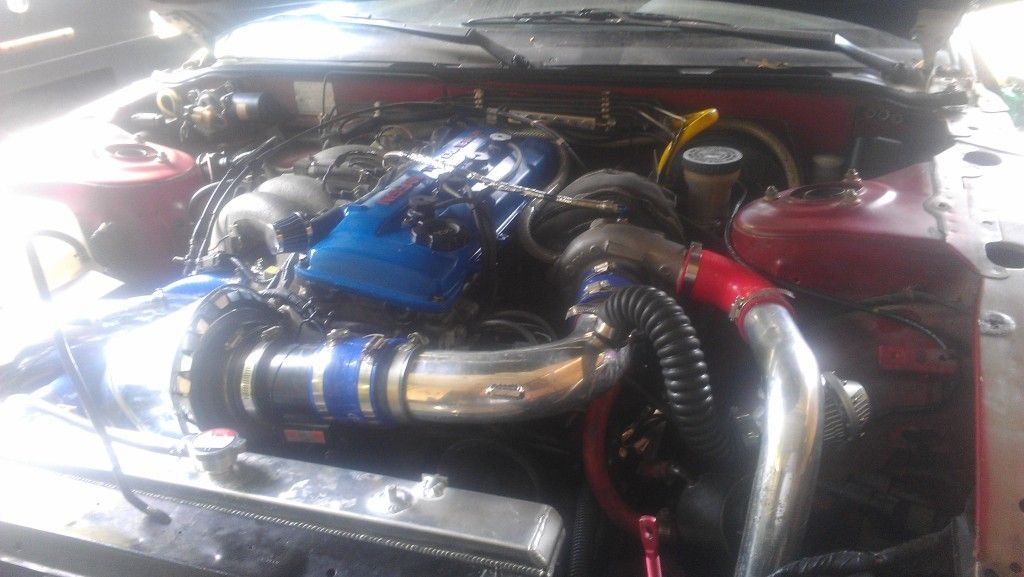

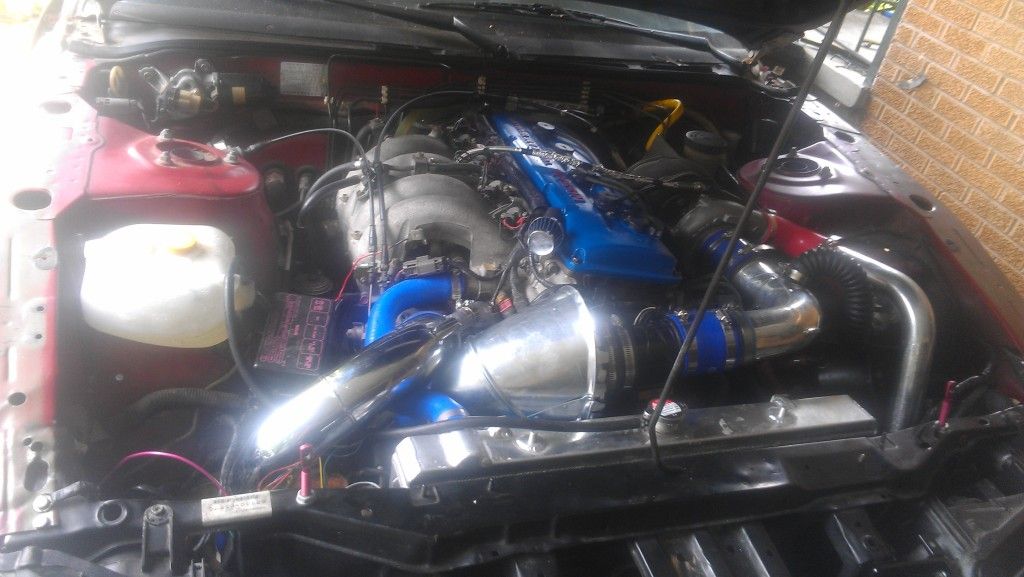

Bmxer300zx · 11-22-2012, 05:56 PM

soooooo clean^^^
.
my pics were takin before completely done but o well

Miguelone · 11-22-2012, 05:58 PM

What did you do to your valley cover?

Bmxer300zx · 11-22-2012, 06:04 PM

cut it and polished it.
I hear alota reasons rb coilpacks go bad is due to getting so hot plus i rerouted my z32 ptu next to the ecu in cabin and didn't like the ugly ptu mount holes so hacked em off then ended up going to there lol.

Lucas180 · 11-22-2012, 06:36 PM

Here is mine, took about 8 months from project start to get it how i wanted it.. almost there...

jr_ss · 11-23-2012, 09:12 AM

Quote:

Originally Posted by shift_down

That is, uh, cluttered as fuck and looks like it was slapped together with disregard to any cleaniness or organization.

However, it if runs and works, then props, but seriously do some cleaning in there.

DanielsonIII · 11-23-2012, 07:17 PM

ka-t setup

Pinggg · 11-23-2012, 07:32 PM

Dump tube coming soon! work in progress, fully built 9:1 E-85 SR, just hit 400miles.

ReEducation · 11-23-2012, 07:36 PM

Quote:

Originally Posted by PoorMans180SX

Looks sick man. Definitely a unique swap

arlok · 11-23-2012, 10:28 PM

still in progress..

shift_down · 11-24-2012, 08:09 AM

Quote:

Originally Posted by jr_ss

That is, uh, cluttered as fuck and looks like it was slapped together with disregard to any cleaniness or organization.

However, it if runs and works, then props, but seriously do some cleaning in there.

Agreed. Any suggestions as far as cleaning it up?

bullfrogg0 · 11-24-2012, 08:12 AM

pattrick02 · 11-24-2012, 08:14 AM

Quote:

Originally Posted by Mannykiller

Just gotta button some things up, Almost finished

i like this. those dump pipes are sick.

jr_ss · 11-24-2012, 08:39 AM

Quote:

Originally Posted by shift_down

Agreed. Any suggestions as far as cleaning it up?

Start in one area and work your way out. I see a bunch of random wires floating around that could be hidden better. If you have the ability to weld you could rotate your turbo comp housing, rework that charge pipe and that will allow you to get that intake over to the fender area and pull cooler air in. Like I said if its functional and you don't mind the disorganization, then no worries.

ILoveJDM · 11-24-2012, 10:15 AM

ugh all these clean bays, mine looks like a pile of shit.

ComicArtist · 11-24-2012, 12:31 PM

S30 engine bay is dirty

FC engine bay is clean

Legoctf · 11-24-2012, 12:47 PM

Fc ka? O.o thats different

Bmxer300zx · 11-24-2012, 03:32 PM

I like that rx7 bro clean and different bet you have better tq curve than a rotory turbo lol.
You plan on doing a turbo setup on that KA? would def finish it off.

ComicArtist · 11-24-2012, 04:20 PM

Thanks! The torque is definitely nice haha, I'm probably going to do a factory rebuild after a year or so and run an SR T25 setup with a fmic, 370cc's and Nistune, run that a while longer and then sell it and go 1J.

s14-rb20det · 11-24-2012, 06:30 PM

[IMG]

[/IMG]

Bmxer300zx · 11-24-2012, 07:13 PM

s14-rb20
What turbo are you running? numbers?
shit looks clean nice to see rb20 swap's in a newer body style.

s14-rb20det · 11-24-2012, 07:18 PM

Quote:

Originally Posted by Bmxer300zx

s14-rb20
What turbo are you running? numbers?
shit looks clean nice to see rb20 swap's in a newer body style.

Thanks bro
T3t4 22psi 440hp

Bmxer300zx · 11-24-2012, 07:24 PM

Quote:

Originally Posted by s14-rb20det

Thanks bro
T3t4 22psi 440hp

nice thats not bad is it laggy? I was gona do a tdo6 or a hx35 this winter one mine its actually above^ with the blue valve covers, just don't want too much lag.

s14-rb20det · 11-24-2012, 07:33 PM

Quote:

Originally Posted by Bmxer300zx

nice thats not bad is it laggy? I was gona do a tdo6 or a hx35 this winter one mine its actually above^ with the blue valve covers, just don't want too much lag.

Looking good!!! The lag is not bad full boost in 3700rpm the moto is good for 8000rpm, you from NY to?

Bmxer300zx · 11-24-2012, 07:43 PM

Quote:

Originally Posted by s14-rb20det

Looking good!!! The lag is not bad full boost in 3700rpm the moto is good for 8000rpm, you from NY to?

ya thats not too bad at all, i just wana make between 3-350whp for next summer the bolt on, boost ups getting boring lol.
Ya from N.Y live on eastern long island.

s14-rb20det · 11-24-2012, 07:46 PM

Quote:

Originally Posted by Bmxer300zx

ya thats not too bad at all, i just wana make between 3-350whp for next summer the bolt on, boost ups getting boring lol.
Ya from N.Y live on eastern long island.

I'm from long island to mineola
