engine/engine bay photos

[Ikera]

haha thanks,

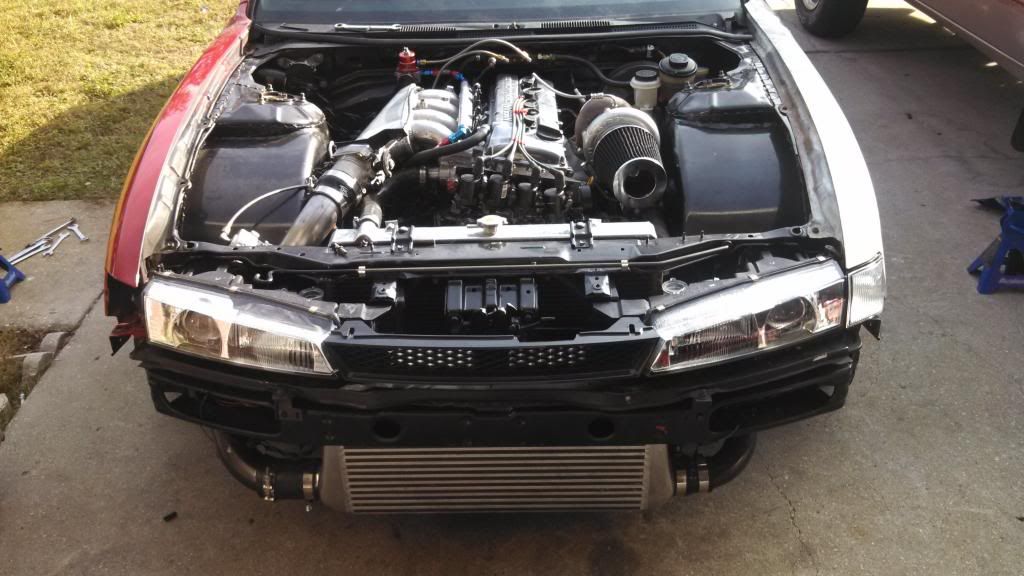

and the front end is R33 style S14 Bumper + Garden lip, ghetto rigged with zip-ties. I'm not proud of what I've done lol

[Super_OK_S13]

Just need a couple things then i can start and drive it to my garage... There will be a core support on there...

[slideways40]

my swap on the road but still got small thing to finish

[Dolph_KYAS13]

DSC_0029 by R32Jordie, on Flickr
just needs to find its way into my bay

[EsChassisLove]

Are those HKS covers????

[Hoffman5982]

Came across this pic

[A'PEXi]

[mewantkouki]

Purple power!!!

[Imarvin240]

TF Works is doing an amazing job on my time attack Z

[tricky_ab]

Originally Posted by Dolph_KYAS13

[stephens14sr]

Originally Posted by Imarvin240

TF Works is doing an amazing job on my time attack Z

Is there a build thread??

[SlideOrDie831]

neo head N dry sump. shit ant no joke.

[street_sleeper]

After 9 years I have finally takn the time to paint this ole bay and install a lava mat onto the firewall....dropping the motor in tomorrow hopefully

[stephens14sr]

Coming along. Ready to pull back apart and paint. Have a 2jzgte being refreshed to fill the space

[hyper_boi]

[StatticMyke]

slideways40- very nice man. perfection.

[motteramm]

Well here is my KA-T, on my 95 s14, still need to tuck and paint the bay :/
[IMG][/IMG]

[Dolph_KYAS13]

Originally Posted by street_sleeper

[/URL]

What size of lava mat did you order to get this coverage? Looks dope.

[Dolph_KYAS13]

Originally Posted by street_sleeper

[/URL]

What size of lava mat did you order to get this coverage? Looks dope.

[EnemyS15]

how hard was it to apply? I have the gold dei stuff. Very adhesive? How bendable and flexible is that? able to get into creases pretty easy? How many strips did you have to cut to get that all in? I might go and redo my firewall with this. just for fun.

[PeaceOnesxWai]

^DEI gold shield is not flexible at all.. you need about $200-300 worth of gold sheet to cover the entire firewall. Make sure you get everything out the way before you apply, that stuff looses its adhesive after the first application.

I heard the silver heat shield is half the price and twice the resistance of gold, look it up. Gold is really just for show

[EnemyS15]

my dei heat shield was flexible, just was TOO flexible... too many creases when trying to smooth around a corner. But the price you are talking about it absurd . I spent maybe 130$ on 2 - 24x24 sections and I covered my entire firewall and frame rails approx 8 inches from the firewall. And I still have a small square left over.

Edit: From what I see, the lava mat is about 10-15 $ cheaper than dei gold. So there's not this huge difference in terms of money between the 2.

[jr_ss]

Engine bay is complete... I may have a few things I've looked over, but nothing will change visibly.

[franklin93zx]

I really need to clean this thing...

[Memberofthe600hpkaclub]

[PoorMans180SX]

The latest in the evolution.

[street_sleeper]

Here is where I got mine from. Made in USA. Ships quick.

Lava Mat Adhesive Backed Heat Shield Mat by Heatshield Products - Lava Mat Adhesive Backed Heat Shield Mat by Heatshield Products 60" x 48"

It took about 4 hours to apply it right. I wanted to get it done in one shot. I used two pieces vs breaking it up. I wanted to make it seems as though it was one sheet and with a thin strip to cover where they meet in the middle (which is covered by the motor anyway). Get a torch. I bought one that is self starting propane for like $30.

Remove everything from the fire wall. Done worry about bolt holes. Once its on just shine a flash light from the inside and you can see them. If you lay it down tight enough you can run your fingers across it and ling them.

Grab some newspaper and lay it on the firewall. Make a template. Lay it on the lava mat. Cut out and hold it up to see if you can trim a little more. Then grab the torch and heat up the firewall and run the flame over the lava mat for only a few seconds, then peel off the back and apply it in the far corner. Once it is on, its on. With heating up the firewall and the material it makes this process very smooth. I held one end with my left hand and basically rubbed it down with a rag. It fit very well around the contours of the firewall.

[street_sleeper]

Originally Posted by EnemyS15

how hard was it to apply? I have the gold dei stuff. Very adhesive? How bendable and flexible is that? able to get into creases pretty easy? How many strips did you have to cut to get that all in? I might go and redo my firewall with this. just for fun.

Here is where I got mine from. Made in USA. Ships quick.

Lava Mat Adhesive Backed Heat Shield Mat by Heatshield Products - Lava Mat Adhesive Backed Heat Shield Mat by Heatshield Products 60" x 48"

It took about 4 hours to apply it right. I wanted to get it done in one shot. I used two pieces vs breaking it up. I wanted to make it seems as though it was one sheet and with a thin strip to cover where they meet in the middle (which is covered by the motor anyway). Get a torch. I bought one that is self starting propane for like $30.

Remove everything from the fire wall. Done worry about bolt holes. Once its on just shine a flash light from the inside and you can see them. If you lay it down tight enough you can run your fingers across it and ling them.

Grab some newspaper and lay it on the firewall. Make a template. Lay it on the lava mat. Cut out and hold it up to see if you can trim a little more. Then grab the torch and heat up the firewall and run the flame over the lava mat for only a few seconds, then peel off the back and apply it in the far corner. Once it is on, its on. With heating up the firewall and the material it makes this process very smooth. I held one end with my left hand and basically rubbed it down with a rag. It fit very well around the contours of the firewall.

[tricky_ab]

[yetijeff]

Originally Posted by tricky_ab

That's nutty. Turbo->supercharger? Wild
