REDSH!FT · 01-25-2006, 05:07 PM

SAGA 2.0S/5.0S Features:
- High precision/full angle step motor used by the core.
- Electronic high-precision sensor (error +/- 1%)
- Large Face for better viewing (68mm)/common body for fitting in pods (60mm) - Abnormality self-detection warning function.
- ON/OFF self-sweeping inspection function
-ON/SLOW, FAST Arm secondary sweep
-OFF/FAST, SLOW Arm secondary sweep
-Alert value setting, Arm Flickering/Buzzer Sounding function
-Nighttime light source brightness automatic attenuation function.
-Black/Heat Resistant/Anti-UV optical Mask design
-Self-illumination/High Contrast/Optical Panel Lighting design
-Use high-illumination/longer life LED Light Source
-Light weight, high heat-dissipation, full aluminum alloy precious metal shell. -Aluminum alloy seat and dashboard sunscreen.
-External connection large size warning indicator (optional)

SAGA 5.0S
-Includes all functions from the 2.0 Series and more powerful functions as well! -External control box not required!
-Peak value record Play/Check function.
-50-sec traffic record function
-Traffic record Play/Pause/Rewind function

Prices:
SAGA 2.0 Boost: 165.00 Shipped
SAGA 2.0 EGT: 195.00 Shipped
SAGA 2.0 Oil Press: 175.00 Shipped
SAGA 2.0 Oil Temp: 85.00 Shipped
SAGA 2.0 Water Temp: 85.00 Shipped
SAGA 2.0 Voltage: 85.00 Shipped
SAGA 2.0 A/F Narrow: 85.00 Shipped

SAGA 5.0 Boost: 195.00 Shipped
SAGA 5.0 EGT: 219.00 Shipped
SAGA 5.0 Oil Press: 205.00 Shipped
SAGA 5.0 Oil Temp: 125.00 Shipped
SAGA 5.0 Water Temp: 125.00 Shipped
SAGA 5.0 Voltage: 125.00 Shipped
SAGA 5.0 A/F Narrow: 125.00 Shipped

Turbo Timer Harness: 40.00 Shipped
Fan Control Harness: 45.00 Shipped
External Warning Lamp: 30.00 Shipped

All gauges come in White illumination and Red illumination.
Includes 1 year manufacturer warranty!

The group buy is on until 25 gauges are purchased! If everyone buys 5 gauges, that's only 5 slots!
If people want Metric, I have to take 10 orders of that specific gauge before it can happen.

We accept Paypal to [email protected] or Credit Card by phone 703-263-7108

Pre-payment is required!

We already have some of these gauges in stock and I have to say...Compared to Greddy, Defi BF and Pivot, these gauges are just as good if not better! Just ask the guys from Shock Drifting! (They are sponsored by SAGA)

-Ian R.
[email protected]
Office: 703-263-7108

drivens13 · 01-25-2006, 05:53 PM

Nice just what i'm looking for but you say the ones we will get are gona be in standard units but are the fittings themselves gona be metric?

fromxtor · 01-25-2006, 06:16 PM

are these 52mm ?

Ian · 01-25-2006, 07:06 PM

The gauges are in standard measure (PSI, Farenheit, etc..) but the fittings are all metric still!

The gauge faces are 68mm but the body is 60mm.

They are extremely high quality (I own a couple myself. I waited to get them in stock, soon as they came, I chose these instead of Defi)

REDSH!FT · 01-26-2006, 03:54 PM

Bump for awesome gauges!

420sx · 01-26-2006, 09:50 PM

those are some awsome gauges i might be in after i sell some stuff, they dont require a control box?? if they do how much is it?

Ian · 01-27-2006, 07:24 AM

SAGA gauges require absolutely NO control boxes. You buy a boost gauge and that's ALL you have to get. They come with stands, hoods, a built in control module and almost everything you'd need. (Oil pressure/temp gauges require a block adapter and Water temp requires an upper hose adapter. Both pieces can be had from greddy for very cheap.)

drivens13 · 01-27-2006, 06:09 PM

Nice,whats the sweep on the water temp gauge and oil pressure?

Andrew Bohan · 01-27-2006, 07:16 PM

if any bay area people wanna see the sagas in person, come out to UC tappy tonight

decksy · 01-27-2006, 10:17 PM

what do the 2.0 look like?

Ian · 01-28-2006, 11:58 AM

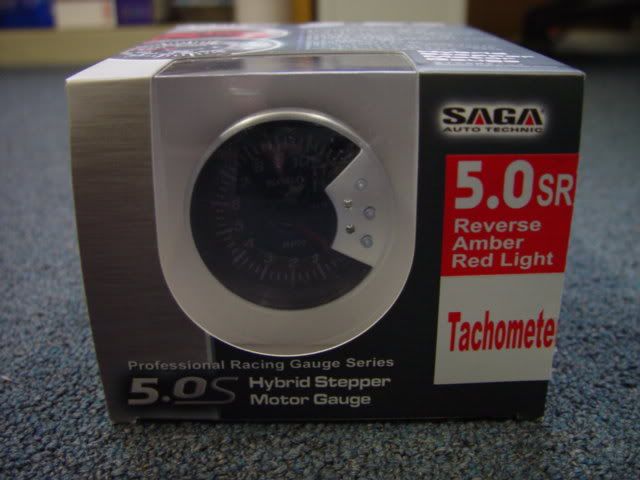

Here are some pics I took myself of my own gauges

Water Temp sweep is 80 to 240 Farenheit and they're all 270* stepping motors

toki · 01-29-2006, 05:48 PM

no fuel pressure available?

luey02 · 02-04-2006, 10:43 AM

does it connect to the ecu or it has its own o2 sensor?

also, the forum wont let me post new threats, you know How to change that?

Ian · 02-05-2006, 02:32 PM

To be honest, I haven't checked to see if the AFR gauges have new sensors. I'm willing to bet though that it reads off of the ECU like most others. I'll have to look into it tomorrow at the shop.

For now...here is a video of my boost gauge (the water temp isn't hooked up...too cold right now, gonna do it in the warmth of the shop instead of my driveway)

http://media.putfile.com/Startup75
http://media.putfile.com/Rev30

Ian · 02-05-2006, 09:45 PM

Just in case anyone is confused. The reason it's at 10 psi vaccum at idle is because -10 psi is = 20 inHg vaccum (which is what you'd read on a traditional gauge...PSI for boost and vac in "inHg")

drivens13 · 02-06-2006, 05:59 PM

One more thing ,do you know what size the fitting is for the water temp gauge(i was looking to put this sensor where the stock water temp sensor hole on my kaDe is)?

Ian · 02-06-2006, 06:50 PM

Sensor fits in Greddy part WJ-34 (coolant hose adapter)

goes in the upper radiator hose.

Here are some pics I took:

From Outside

Running

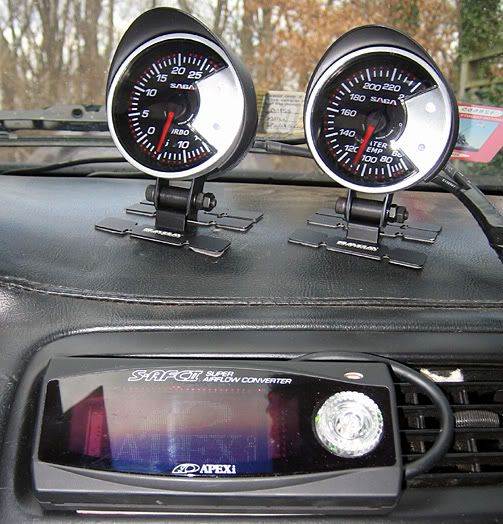

Next to an SAFC II

Shutdown Sequence

*the water temp sensor is yet to be hooked up*

REDSH!FT · 02-07-2006, 05:03 PM

Bump for SAGA gauges!

No one wants to get in on this? What if I drop the price some more?

toki · 02-07-2006, 06:52 PM

Quote:

Originally Posted by toki

no fuel pressure available?

123456789101112

Ian · 02-07-2006, 07:03 PM

Sorry, I thought I answered that already.

No Fuel Pressure available. The gauges listed in the initial post are all that is available.

REDSH!FT · 02-08-2006, 11:16 AM

Prices are updated as is the required quantity of the group buy!

Dr. Moreau · 02-08-2006, 03:01 PM

are these shipping immediately? i'd like a saga 2.0 boost in white, but can't really wait around for it.

REDSH!FT · 02-08-2006, 03:58 PM

For the GB there is a wait until 25 gauges is met.

But if you are in need of a boost gauge and you don't want to wait, we can get you one, but it won't be for the group buy prices. Currently we're out of stock w/ boost gauges but we've got some coming pretty soon.

drivens13 · 02-08-2006, 07:37 PM

Yeah i really need a water temp gauge right now but could maybe wait depends how long the wait is,i'm just going to start spreading the word then.

Dr. Moreau · 02-08-2006, 08:02 PM

non gb price?

REDSH!FT · 02-13-2006, 01:21 PM

The Non-GB prices are about 20% higher than these FYI...

Bump for awesome deal on some new gauges!

Ian · 02-14-2006, 09:54 PM

These gauges are super accurate within 1%!!!

It's incredibly hard to find this quality at these prices guys! Jump on it!

drivens13 · 02-15-2006, 07:42 PM

So how many more people is needed to join the group buy before you can ship these out?I can see already its gona take for freaking ever for others to join.

240sxfan6882 · 03-07-2006, 05:53 AM

Is this still goign!?!?!!? If so Im gettign this boost gauge as SOON as you reply! Lemme know!

dookie · 03-07-2006, 08:26 AM

Do you have a water temp gauge in stock?
